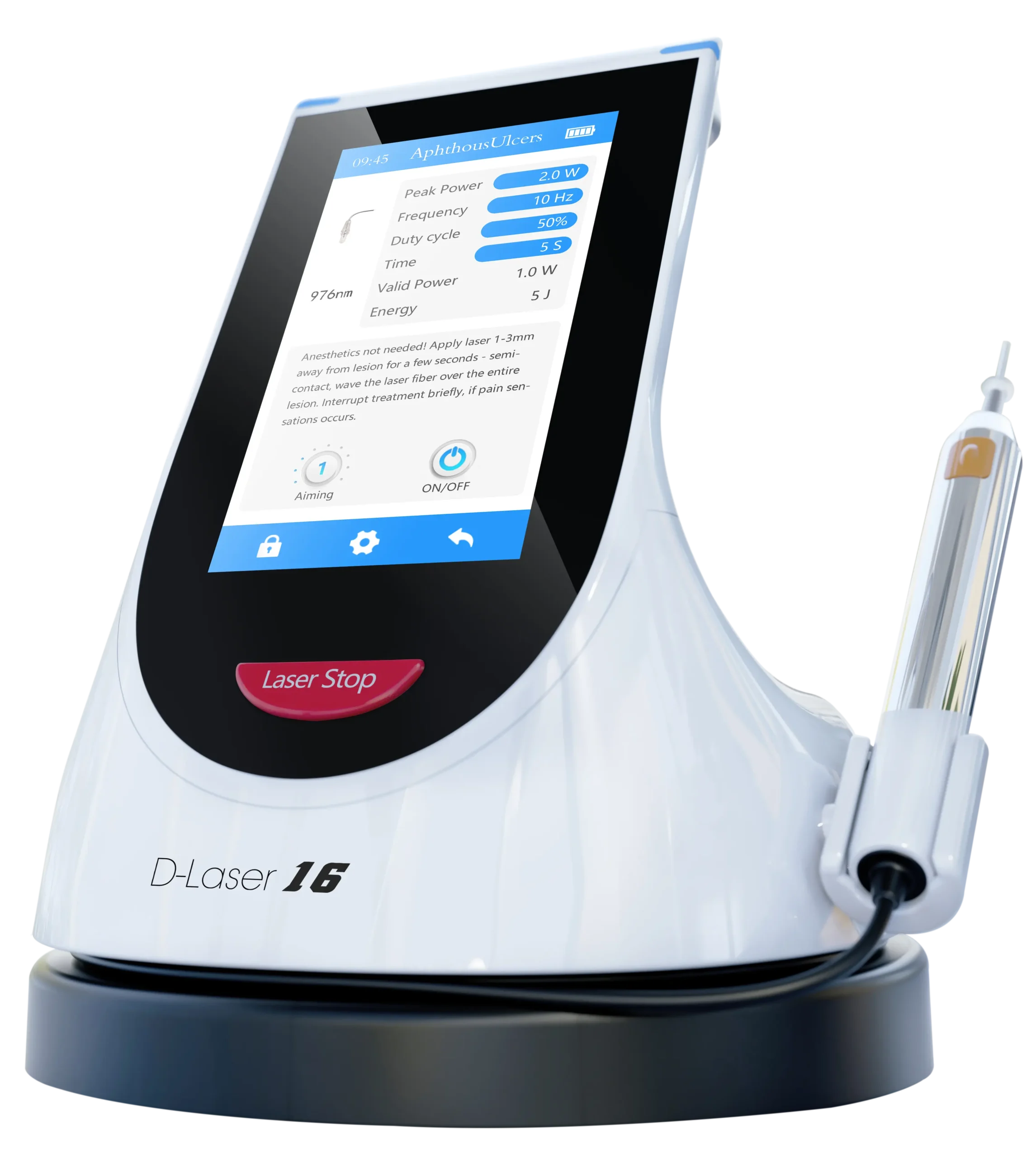

D-Laser 16
Laser Overview
The D16 diode laser represents a state-of-the-art solution for a wide range of dental and
oral soft-tissue procedures. Engineered with advanced technology, this versatile device is designed for:
The D16 utilizes a solid-state diode laser, generating invisible infrared radiation. The laser energy is delivered

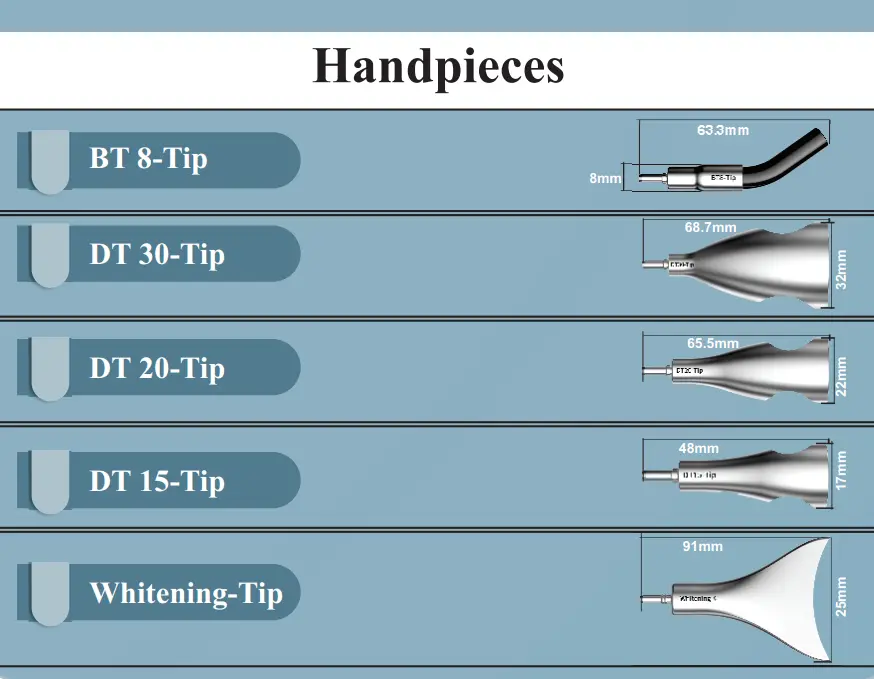

to the treatment area through a flexible optical fiber, which connects the laser unit to a handheld applicator.

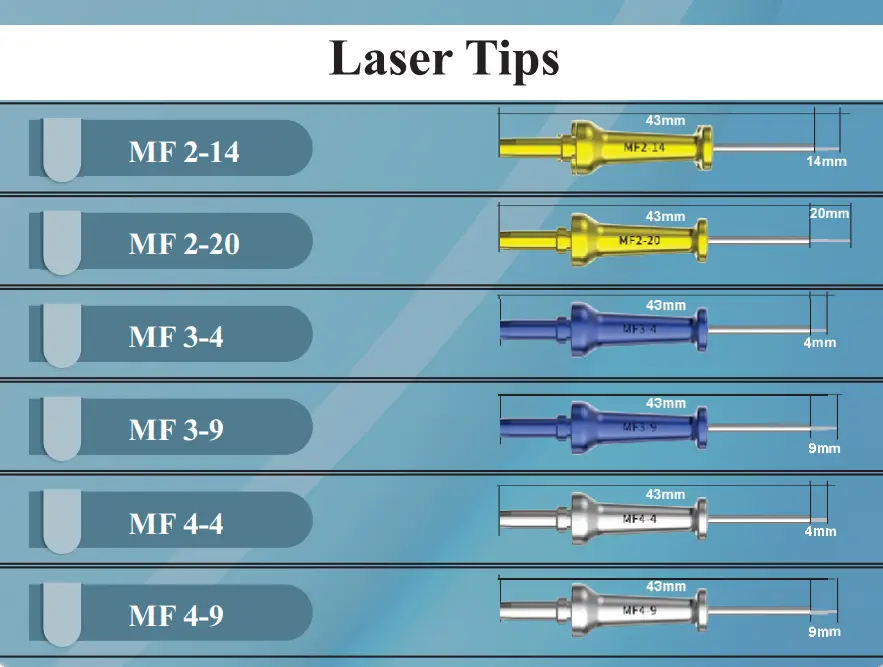

A variety of, Laser tips are available, each optimized for specific clinical applications.
Activation of the laser is controlled via a
wireless footswitch, allowing for efficient,
hands-free operation during procedures.
Remarkable treatment effect : there is basically
minimal bleeding during surgery, minimizing the
postoperative inflammation, reducing pain of
patients and accelerating the recovery.
Technical Specifications
Dual Wavelength
Triple Wavelength
Wavelengths, Optical power &
Laser System:
976 ± 20 nm: Pmax=16W : Class IV
650 ±20 nm: Pmax=200mW : Class II
(According to IEC 60825-1)
976 ± 20 nm: Pmax=16W : Class IV
650 ±20 nm: Pmax=200mW : Class II
450 ±20 nm: Pmax=4W : Class IV
(According to IEC 60825-1)
Laser Medium
Emission Modes:
Aiming Beam:
Battery:
Optical Fiber Diameter
Display
InGaAsP Diode
CW (continuous wave), chopped 1 Hz to 20 kHz
650 ± 20 nm/Pmax<5mW
5200mAh (Built-in Rechargeable Lithium-Ion Battery)
200 µm / 300 µm / 400 µm
5″ Full View Colour Touch Panel With Flat UI Design
Woodpecker® D16 Diode Laser –
Clinical Applications & Wavelength Functions
Clinical Applications & Wavelength Functions
Infrared Wavelength – 976 ± 20nm
Red Wavelength – 650 ± 20nm
Blue Laser – 450 ± 20nm
