Formlabs Form Studio 1:
Professional Resin 3D
Printer, Pre-Book in India
Professional Resin 3D
Printer, Pre-Book in India
Pro resin printing for clinics, labs and institutes. Print most parts in under 2
hours, with razor-sharp detail, a safe low-order workflow and an open
material platform. Arriving in December. Pre – book now with Villa India,
authorised Formlabs partner.
*When printed on Form Studio 1 using VOC Extractor.
< 2 hrs
Most prints
98%
Print success
35µm
XY resolution
130 mm/hr
Maximum print speed
OVERVIEW

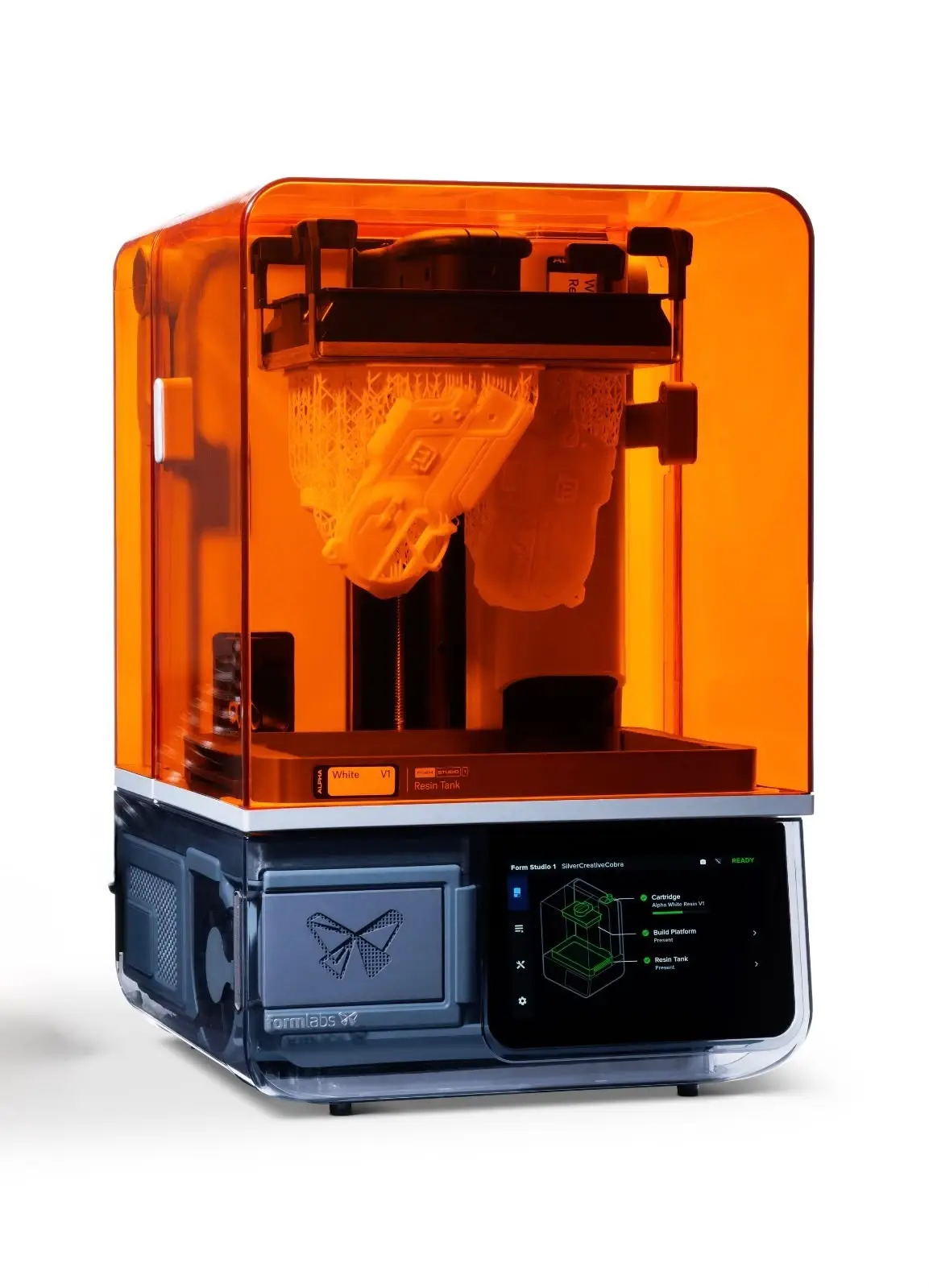

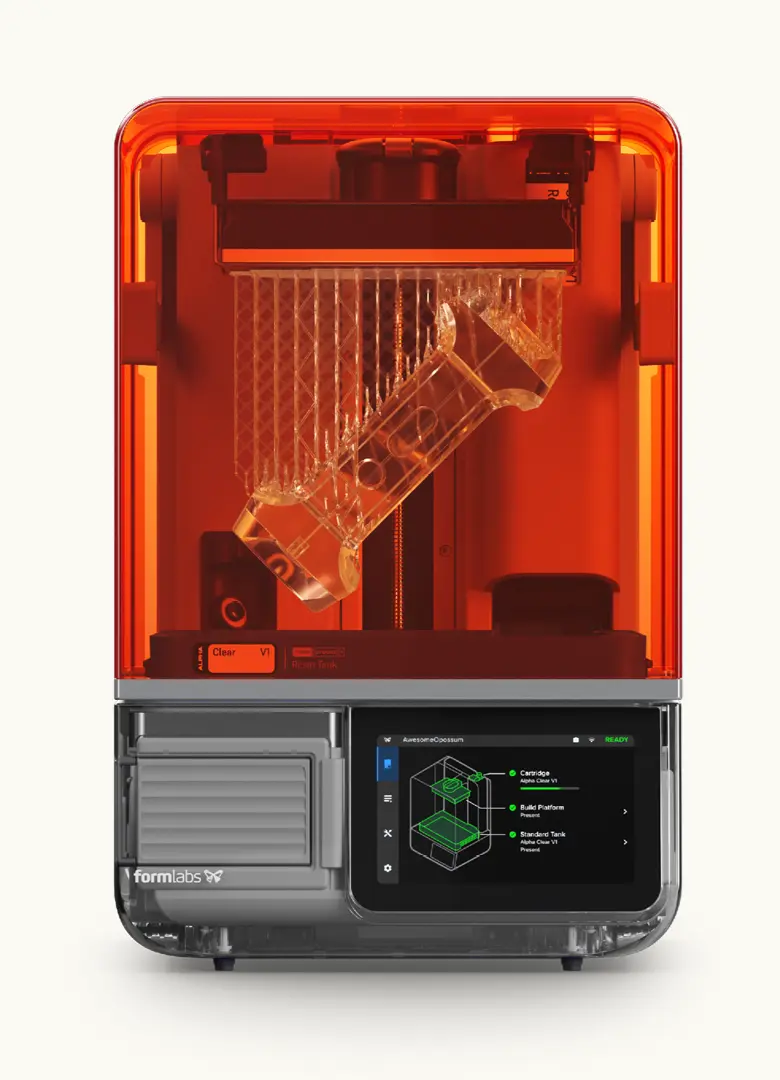

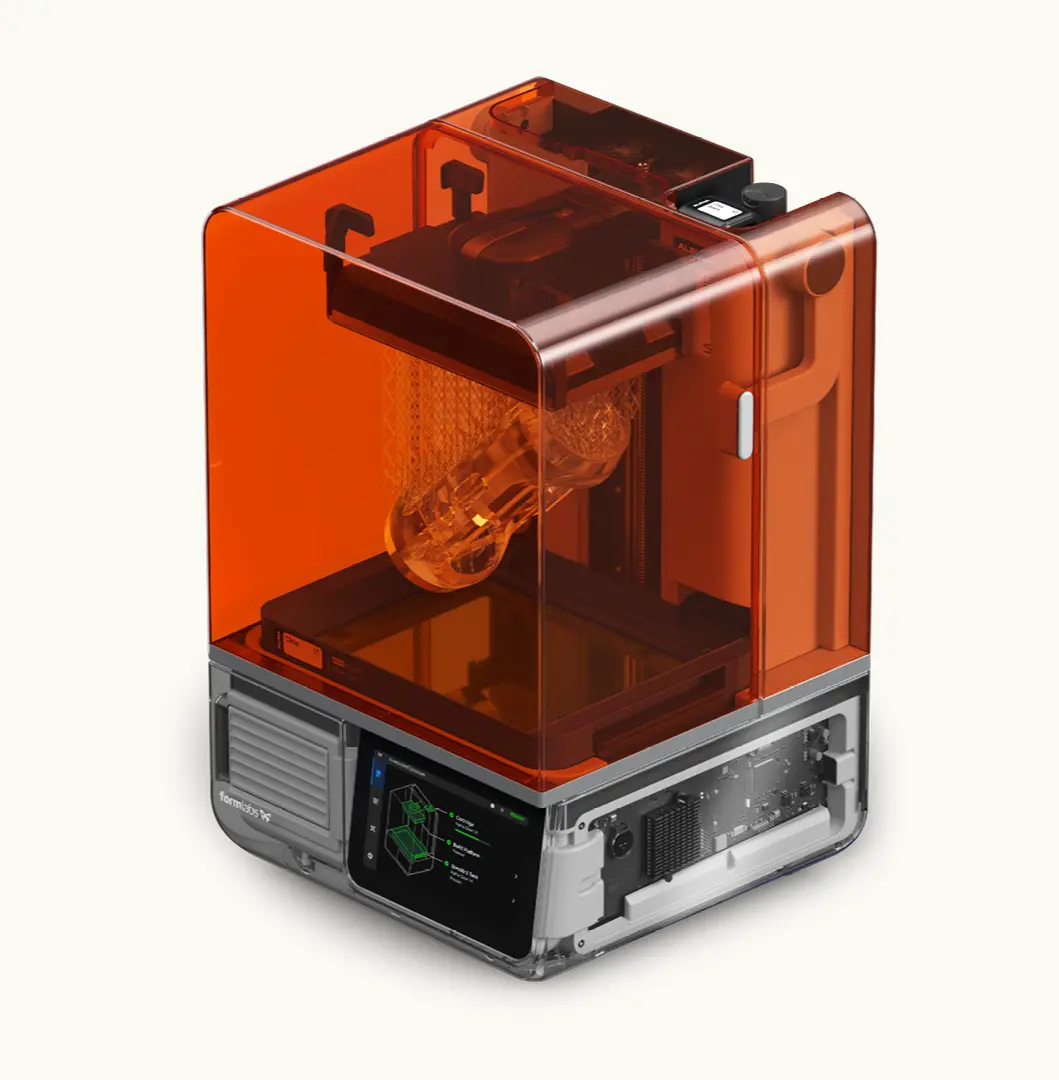

Meet the Form Studio 1: Pro
Resin Printing Made Accessible
Resin Printing Made Accessible
Formlabs brings professional-grade resin 3D printing within budget with the
new Form Studio 1. It combines a powerful, long-lasting print engine with an
open material platform, so you can produce highly detailed parts in under two
hours with a workflow designed to be safe, reliable and easy from start to
finish.
As an authorised Formlabs partner, Villa India supplies, installs and supports
the Form Studio 1 across India. Explore our full range of Formlabs 3D
printers.
FEATURES
Key Features of the Form Studio 1
Five things that make the Form Studio 1 a professional resin printer for everyone.
Most prints finish in under two hours, with
print speeds up to 130 mm/hr. A custom
lens array and 28 LEDs deliver a uniform,
highly collimated 6 mW/cm² light field that
cures resin quickly and evenly.
Custom Lens Array and 28 LEDs
Uniform light across the build area for fast,
even curing, layer after layer.
Release Texture V2 and Flexible Film
Tank
Lower peel forces mean faster printing
without compromising surface finish or fine
detail.
Work
Designed for clinics, labs, offices and
classrooms, with low-odor Alpha Resins
and a workflow built around safety.
UL GREENGUARD Gold Certified for
Low VOC Emissions
Alpha Resins are the first to achieve UL
GREENGUARD Gold, certifying low VOC
emissions when printed on Form Studio 1
with VOC Extractor.
Skin-Safe Printed Parts
Certified to ISO 10993 for long-term (more
than 30 days) skin contact when postprocessed per Formlabs guidelines. Noncytotoxic, non-irritating, non-sensitizing.
Lower Risk From Incidental Skin
Contact
Liquid resin scored as a non-skin irritant
under OECD 439.
Fine pixels and finely tuned anti-aliasing
capture subpixel detail, while lower peel
forces and light-touch supports leave
smooth, clean surfaces.
Dimensional Accuracy You Can Rely On
Every material setting is calibrated for
dimensional accuracy, holding ±0.15% XY
tolerance so assemblies fit together as
designed
Smooth Surfaces, Sharp Detail
35 µm XY resolution and layer thickness from
25 to 250 µm for crisp fine features.
Every material comes with validated print
settings, tuned on hundreds of test parts,
for 98% print success.
Intelligent Control Systems
Monitors resin temperature, resin level, print
forces and leveling during each print.
Start with validated Formlabs resins for reliable results out of the box, or branch out to third-party resins with no license fee.

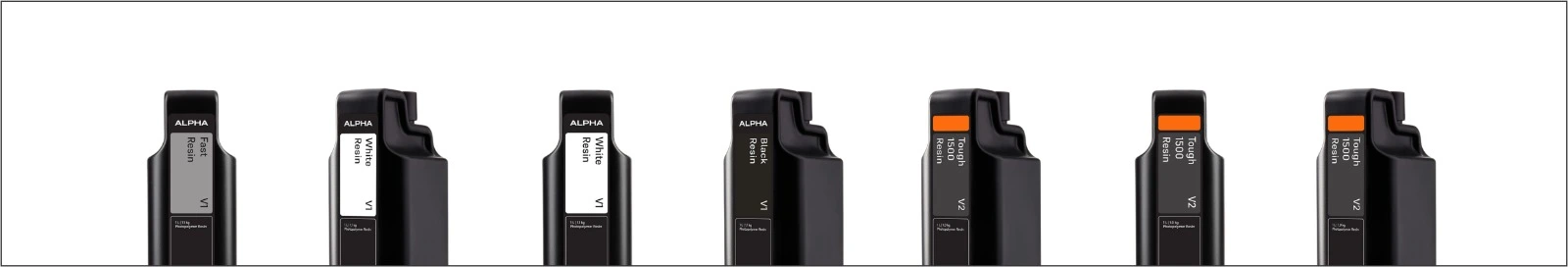

ALPHA RESIN
Alpha Resins: Next-Generation General Purpose Resins
Get started with Alpha Resins, engineered for stunning, precise parts with engineering-grade performance.
Looking for other validated Formlabs materials? See our Formlabs resin range or talk to our team
Alpha Model Resin
A deep, fully matte, neutral
surface that captures every
detail, down to the smallest
crevice and texture, and paints
beautifully.
Alpha Fast Resin
Prototype and iterate faster
with print speeds up to 130
mm/hr, for components in
minutes or entire build
volumes in less than 2 hours.
Alpha Clear Resin
Optical clarity, crisp fine
features and smooth,
dimensionally accurate
surfaces for see-through parts
that fit together.
Alpha Black, Grey and White Resin
Rich matte color, crisp fine
features and smooth,
dimensionally accurate
surfaces for parts that are
display-ready and fit together.
BUILT FOR YOUR PRACTICE
Who Is the Form Studio 1 For?
Professional resin printing for dental clinics, labs and institutes. The right materials depend on your application,
so our team will help you choose the Formlabs resins that suit your work.
Dental Clinics and
Orthodontic Practices
Orthodontic Practices
Bring resin printing in-house without
needing a specialist. Learn to print in 10
minutes, print most parts in under two
hours, and work with a low-odor,
rigorously tested workflow designed for
the places you work
Dental Labs
Fast turnaround, ±0.15% XY tolerance and
an open material platform that accepts
third-party resins with no license fee.
Queue and track jobs from the free
Dashboard software or the Form Mobile
App
Dental Institutes and
Colleges
Colleges
An easy-to-learn printer with a safe, lowVOC workflow, validated print settings and
free PreForm software, so students and
faculty get reliable results from day one.
BUILT FOR YOUR PRACTICE
Learn to Print in 10 Minutes
Everything you need to go from design to finished part.
Wash
A quick flex of the build platform
pops parts free with no scraping.
Air dry before curing.
Cure
Curing brings each part to its final
mechanical properties.
SPECIFICATIONS

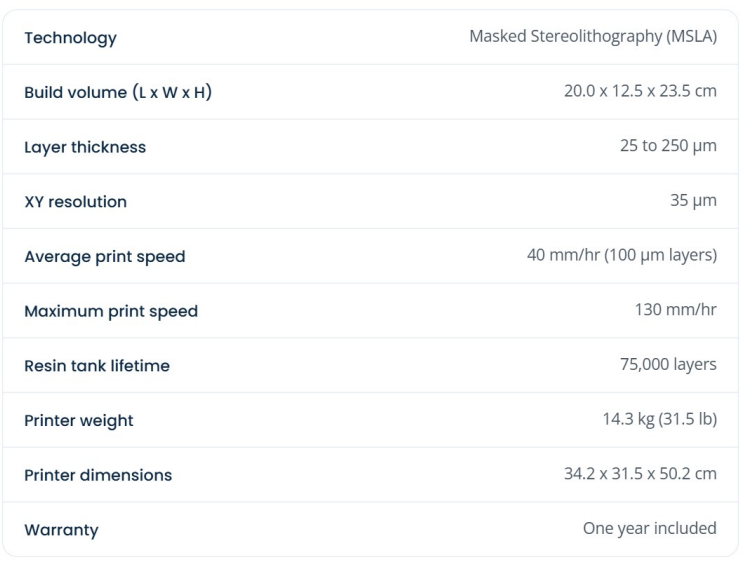

Form Studio 1 Technical
Specifications
Specifications
Printer Specifications
Software and File Compatibility
Operating Systems
Mac OS X 10.12 and up, and Windows 10 64-bit
(version 1809) and up.
SUPPORTED FILE FORMATS
Mesh files (STL, OBJ, 3MF), STEP files (STEP, STP,
STPZ), SOLIDWORKS files (SLDPRT, SLDASM), PTC
Creo files (PRT, ASM), Jupiter Tessellation files (JT) and
CATIA V5 files (CATPart, CATProduct).
PRE-BOOKING OPEN
Pre-Book the Form Studio 1
at Villa India
at Villa India
The Form Studio 1 arrives in December, and pre-booking is open
now. Share your details and our team will call you with availability
and next steps.
Toll free: 1800 202 1960
Phone: 99100 28321
Email: welcome@villaindia.com
WHY VILLA INDIA
Why Buy the Form Studio 1 From Villa India
Authorised Formlabs
Partner
Partner
Villa India is an authorised
Formlabs partner in India, so
you get genuine products with
official warranty and after-sales
support.
Trusted Dental
Equipment Supplier
Since 1992
Equipment Supplier
Since 1992
Over 35+ years of experience
supplying dental clinics, labs,
hospitals and institutions
across India, backed by a
technically qualified team.
PAN India Installation
and Service
and Service
Sales, installation and technical
support across major cities
including Delhi, Mumbai,
Chennai, Hyderabad, Bangalore
and Kolkata.
A Complete Digital
Dentistry Partner
Dentistry Partner
From intraoral scanners and
CAD software to milling and
thermoforming, the full digital
workflow under one roof.
