NewTom
GiANO HR FullView
Perfect. Vision
Most Advanced CBCT
IGZO Flat Panel Sensor
FOR A FUTURE-READY
PRACTICE
featuring a new design: NewTom GiANO HR FullView, redefined to
harmonise with the entire NewTom imaging range, now
offers even higher performance, delivering high-definition
2D and 3D images that capture even the finest detail.

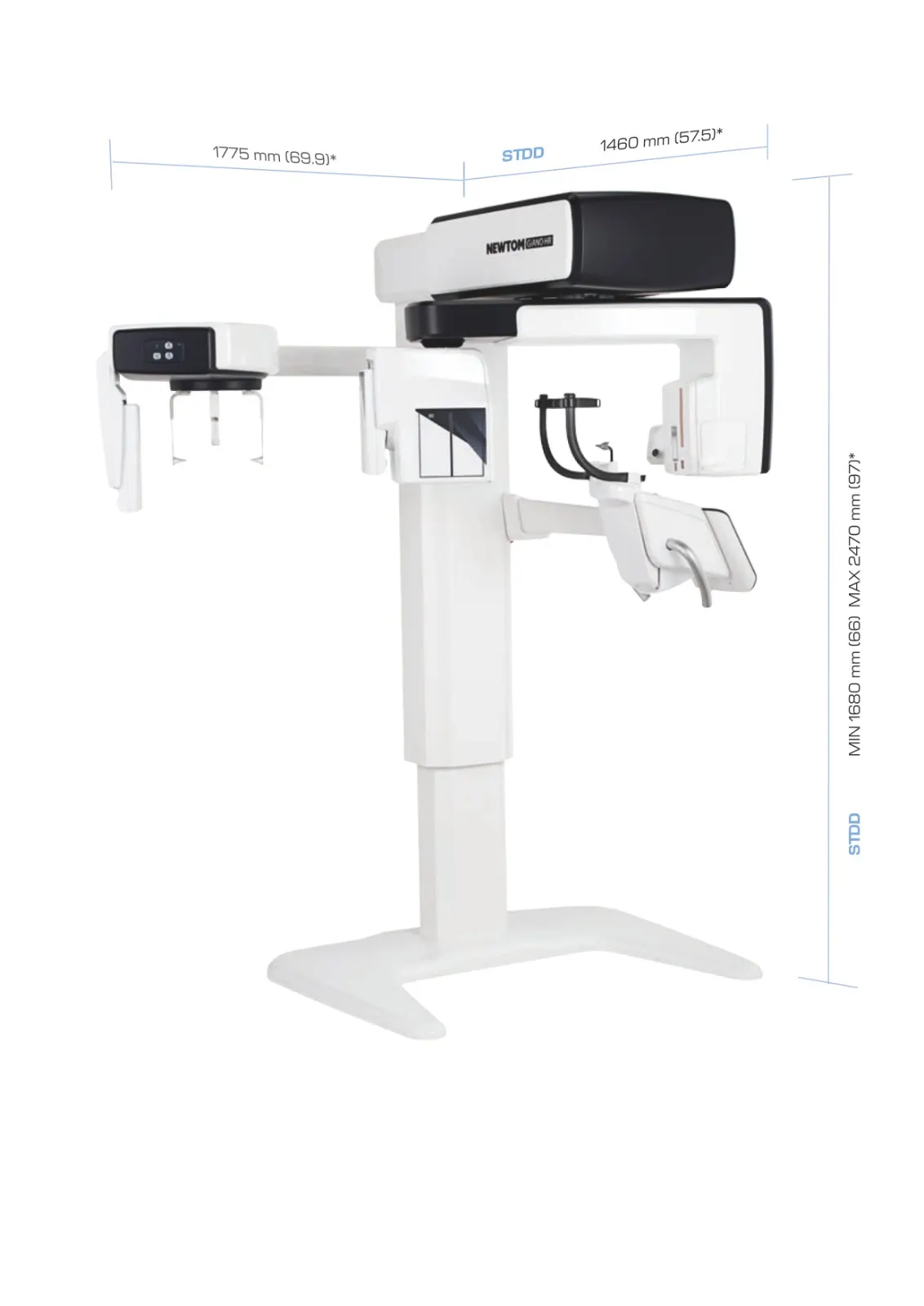

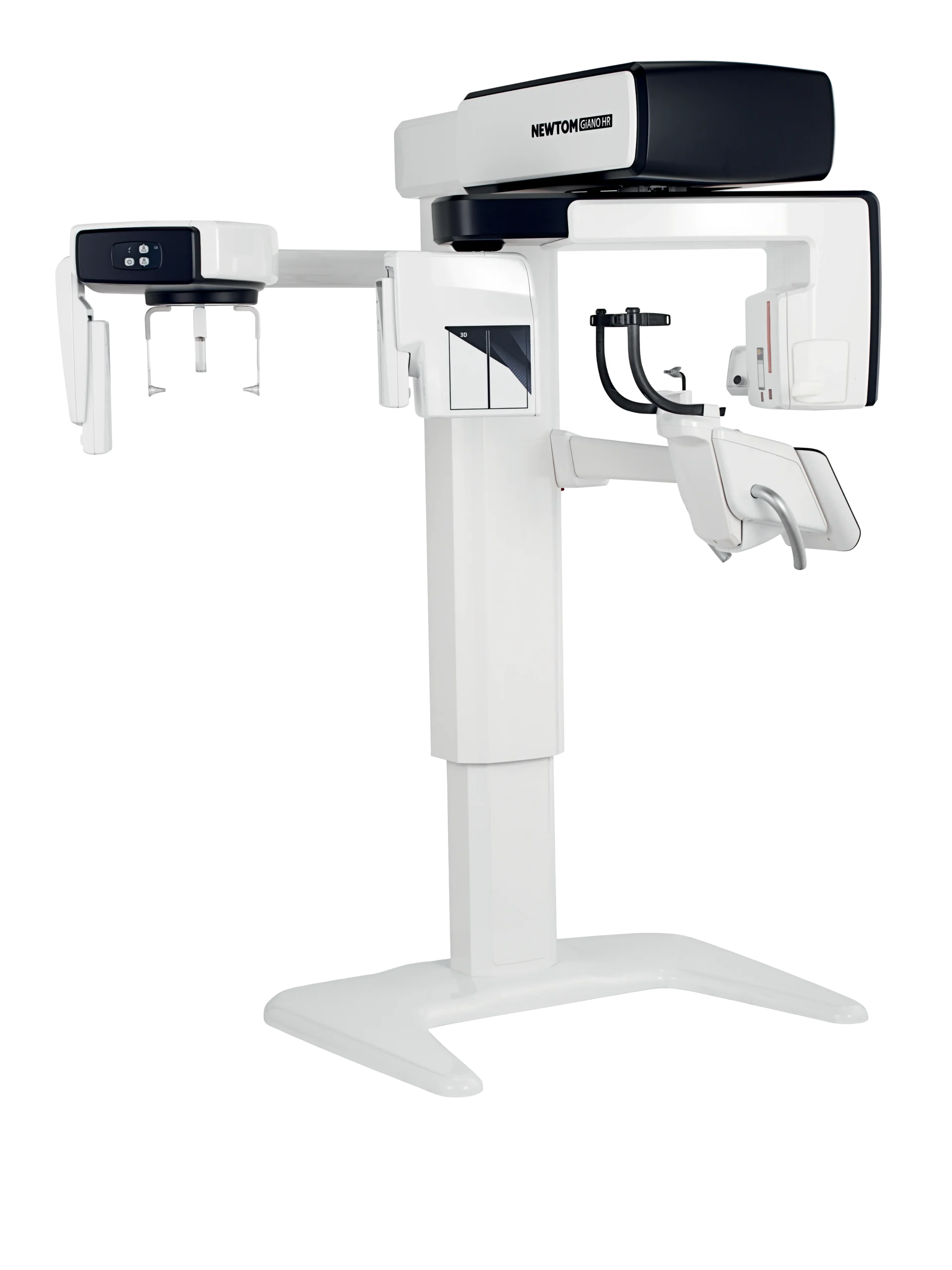

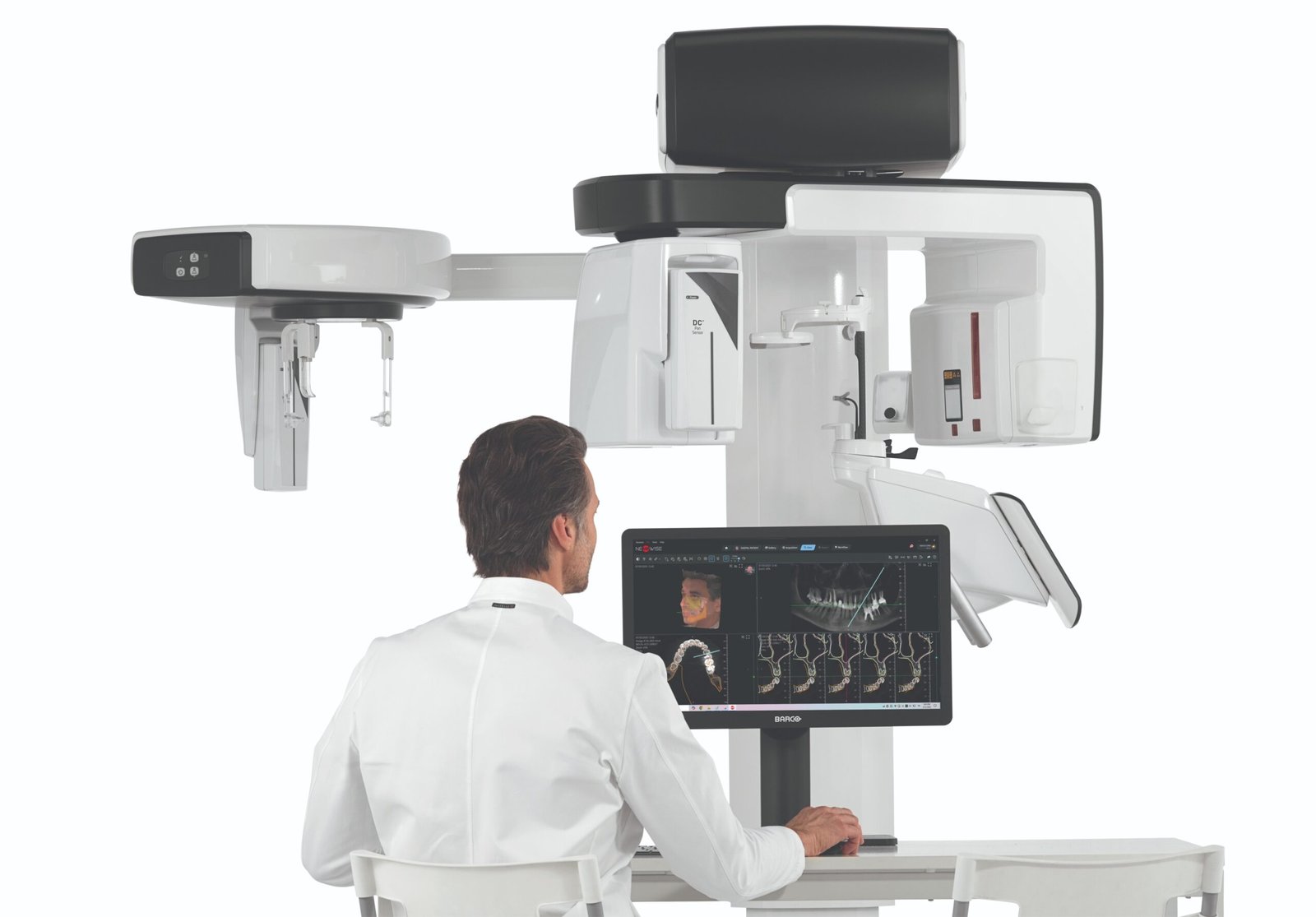

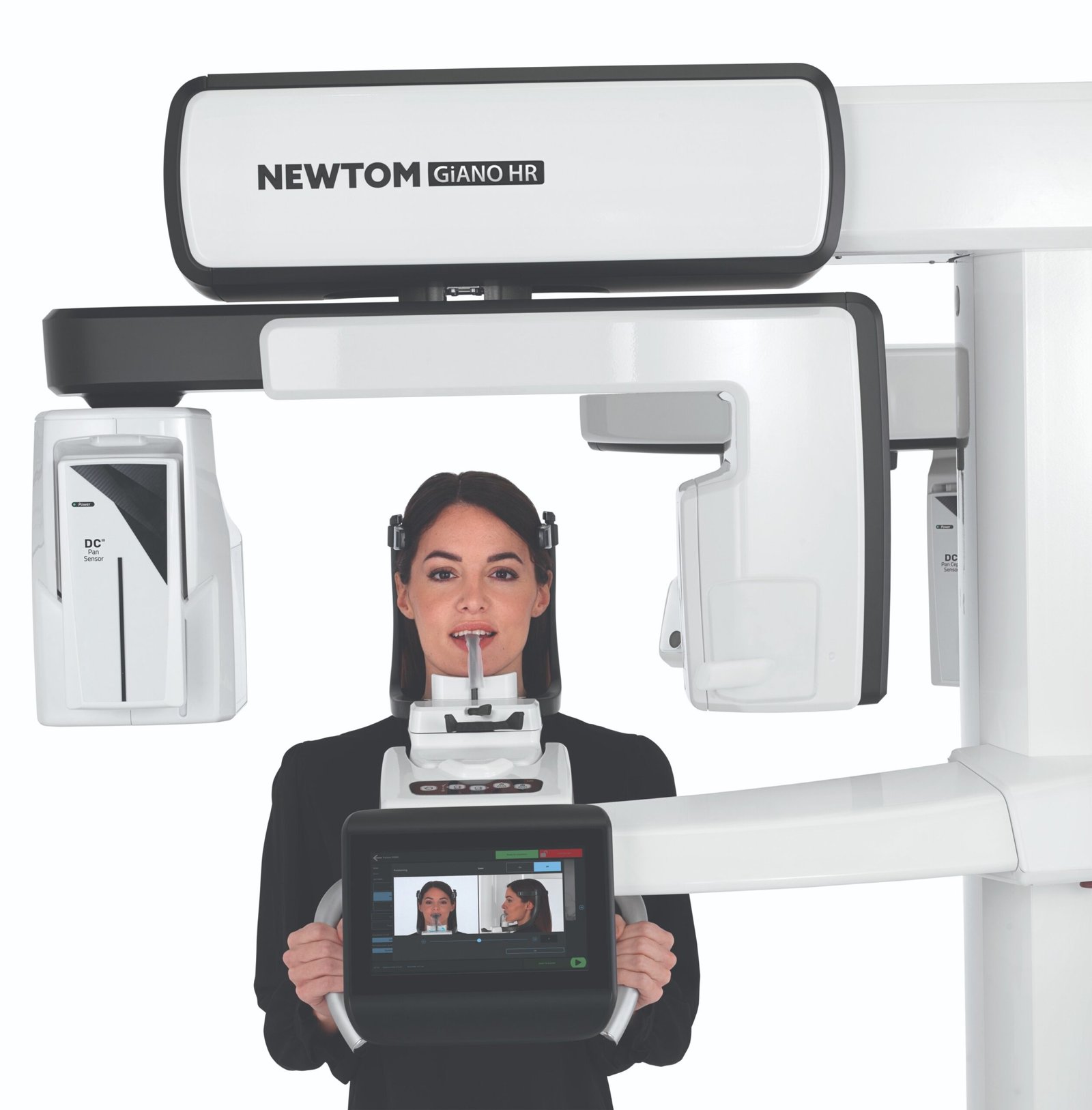

NewTom GiANO HR FullView
Five FOV configurations for different diagnostic needs. ApT technology and teleradiographic function for high-contrast, finely detailed images.
ADVANCED SOFTWARE
Neowise is a technologically
advanced platform for
managing, processing,
consulting and sharing all
required diagnostic images.
Three-dimensional facial
models can be superimposed
on X-ray scans to provide
a comprehensive overview
and allow accurate treatment
predictions.
3D PANEL
Ultra-high levels of detail for
guided surgery, prosthetic
design, endodontic studies
and implantology
INTELLIGENT LIGHTING
Customisable with different colours and intensity levels, this system creates an atmosphere that helps patients relax and indicates device status at every stage of positioning and scanning.

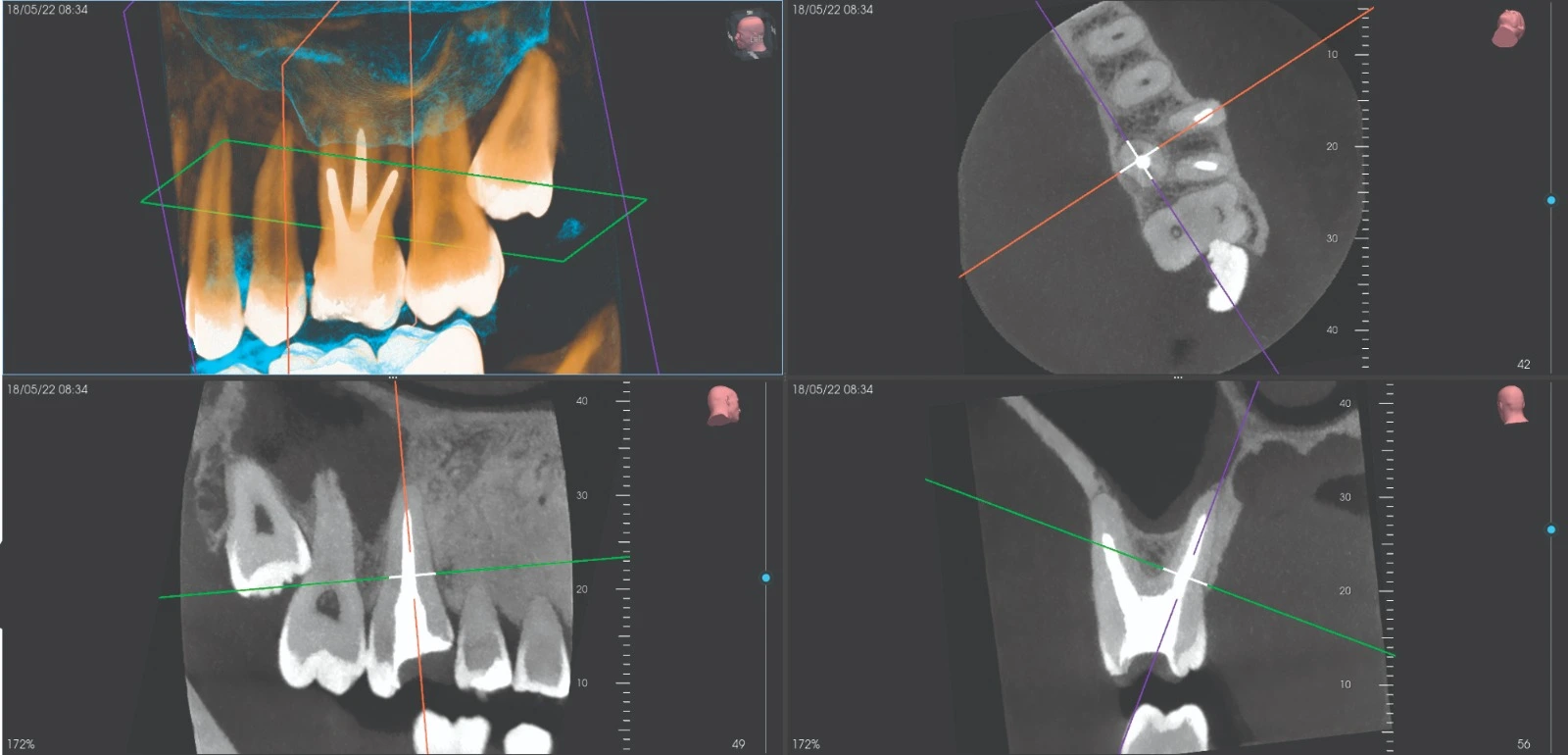

HIGH-RESOLUTION 3D PANEL
The latest NewTom 3D panel adopts a technology that seamlessly integrates with NewTom GiANO HR FullView pre- and post-processing protocols, allowing users to capture even the smallest details, such as variations of dental roots, canal fractures, or bone anomalies. The thus-obtained 3D acquisitions ensure more precise diagnoses, optimal treatment planning and monitoring of clinical conditions, always with the utmost attention to patient health and well-being.
OPTIMISED 3D SCANNING PROTOCOLS
Each FOV can be adapted to meet any clinical need thanks to a choice of three protocols: ultra-low dose for surgical follow-ups, standard for treatment planning, very high levels of detail for micro-structure analysis.

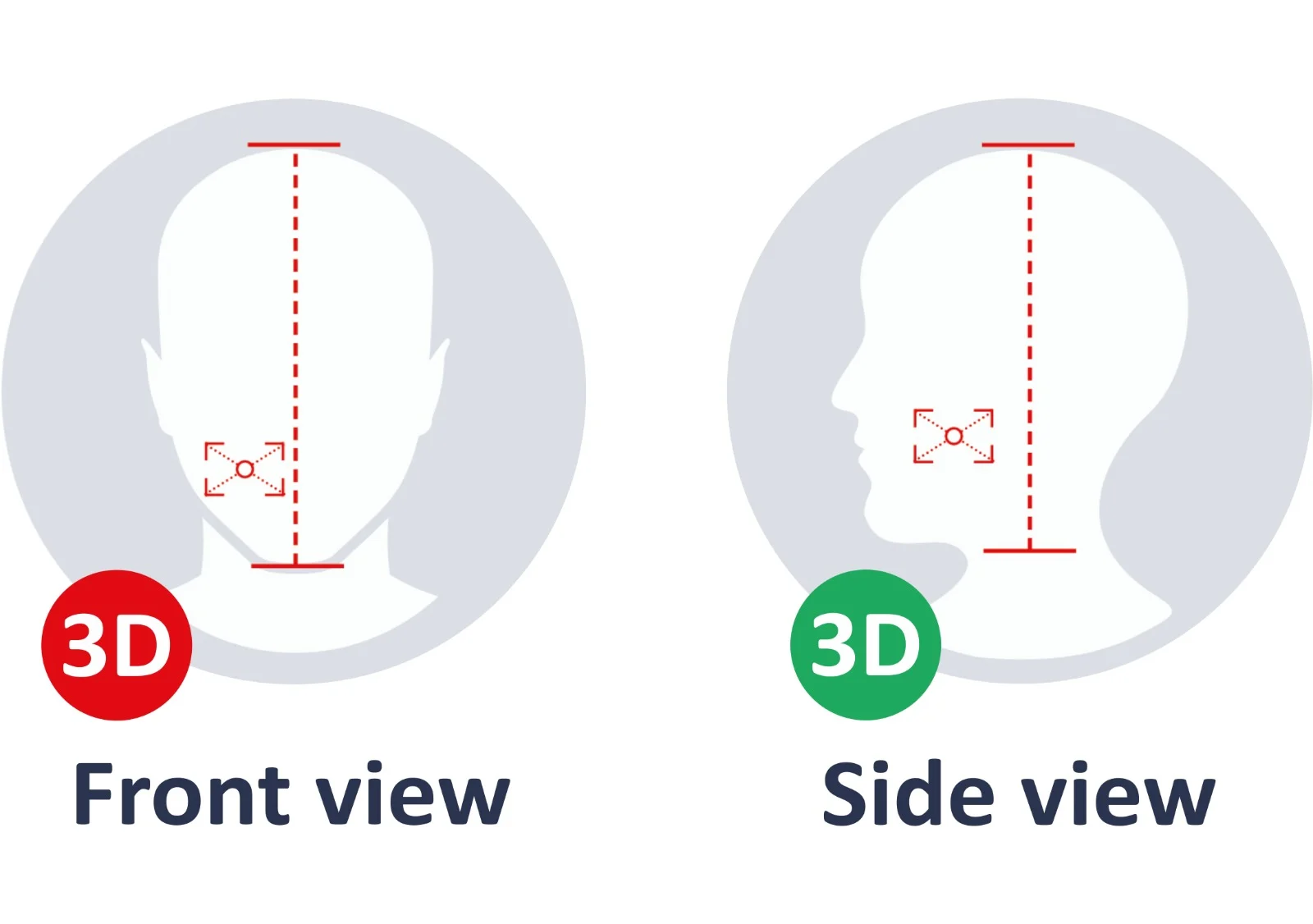

SCOUT VIEW SYSTEM
Allows two images (lateral and frontal) of the patient to be obtained with minimal exposure. Practitioners can then modify the 3D scanning area through precision servo-assisted movements of the machine controlled from their workstation, thus avoiding the risk of having to repeat the scan.

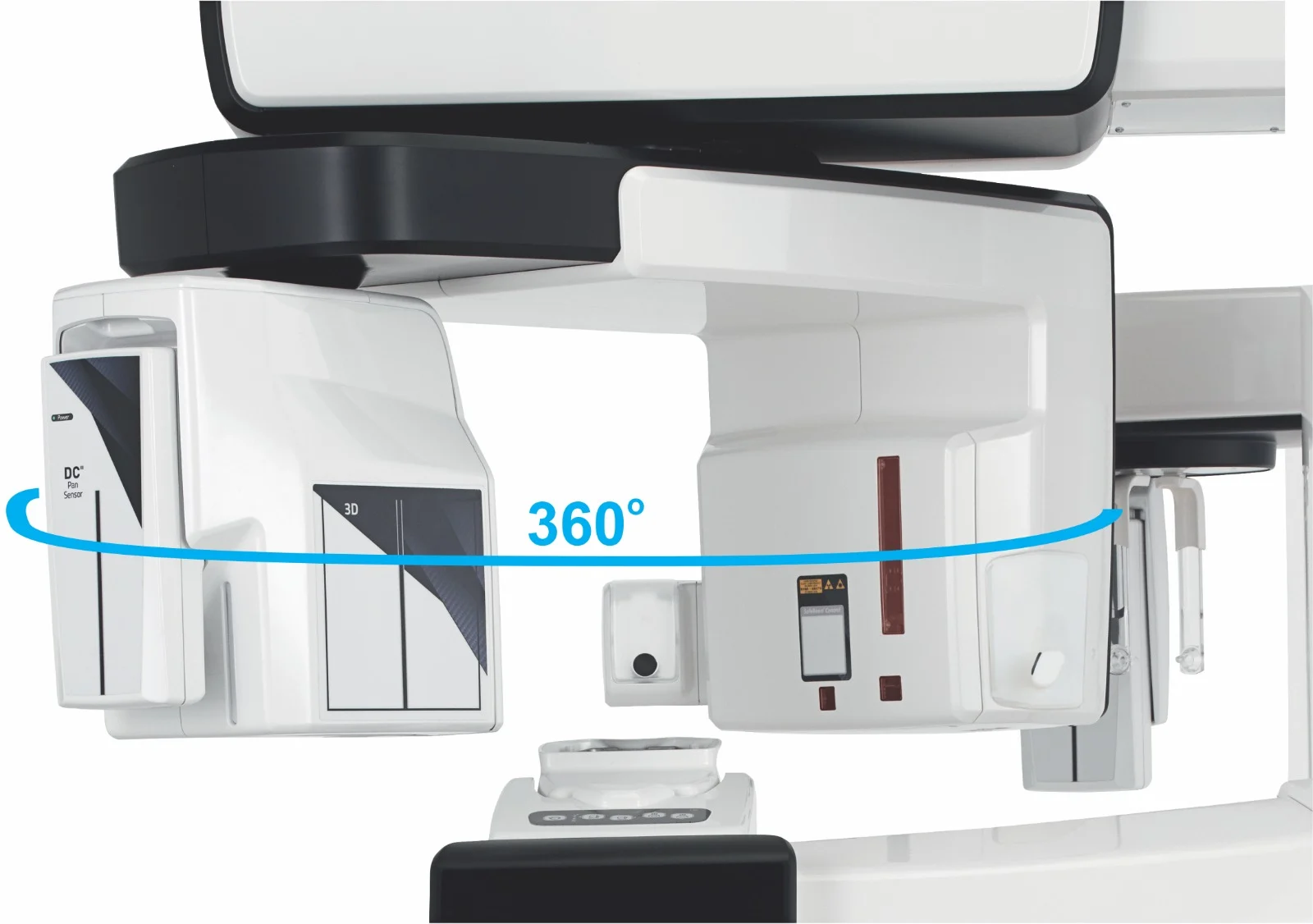

360° SCANNING TECHNOLOGY
360° scans and optimised algorithms always ensure the best outcome. This image acquisition technique yields high quality images and considerably reduces artifacts, with short scan times.

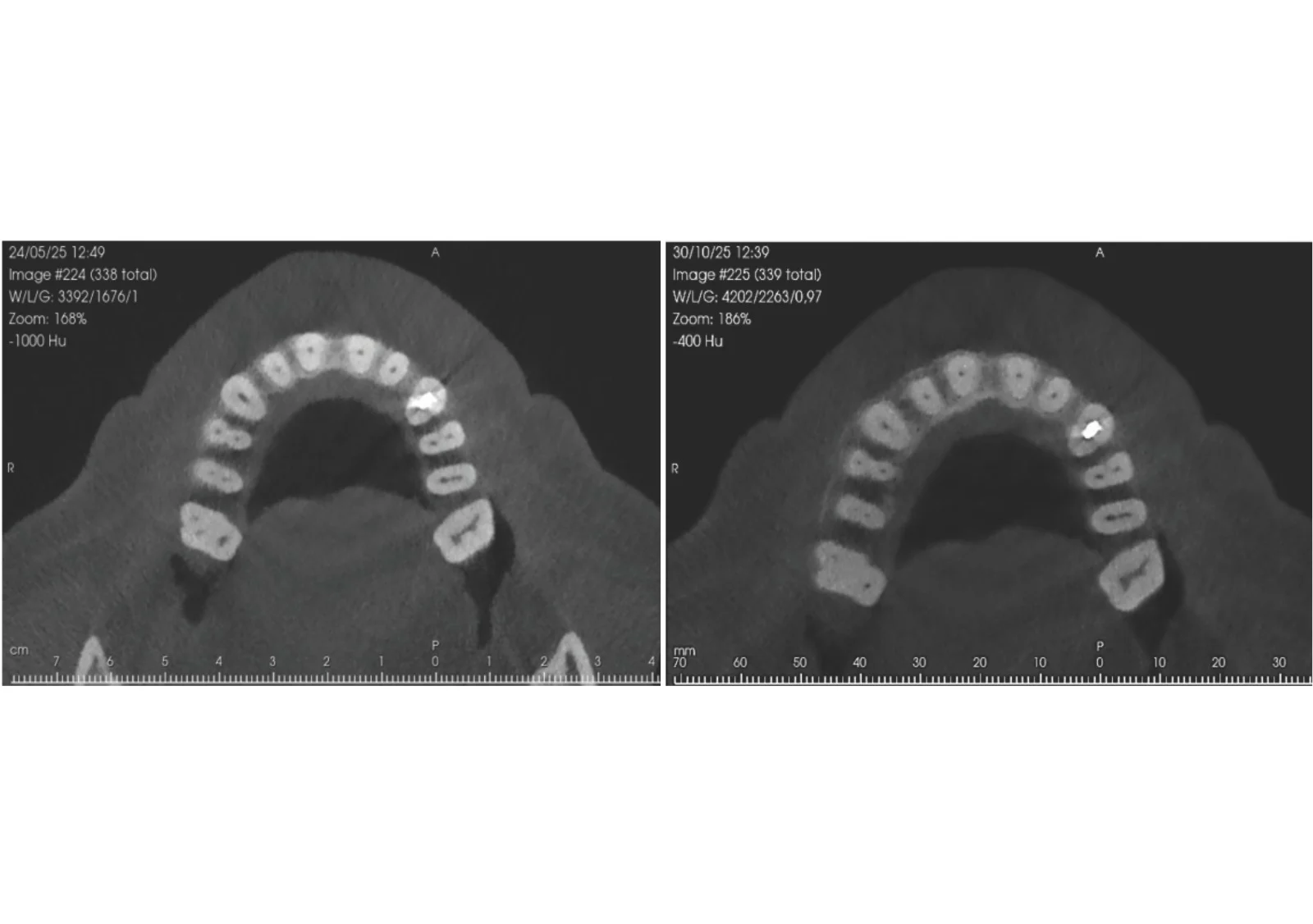

AMAR (AUTOADAPTIVE METAL ARTIFACT REDUCTION) FILTERS
These can recognise metal elements and, via special software, generate an additional set of images in which artifacts are minimised. Highly useful for planning specialist treatments that require segmentation of anatomical structures.
ESSENTIAL CONFIGURATION
NewTom GiANO HR FullView comes, as standard, with a range of FOVs wide cover multiple
treatment areas: endodontics, implantology, orthodontics and general dentistry.
- FOV: 6×6; 8×6; 8×8; 10×6; 10×10; 11×8; 13×6; 13×10
SUPERIOR CONFIGURATION
Together with the Essential configuration, the Superior FOV range extends the
scope for treatment to the gnathology, otolaryngology and the maxillofacial field,
including scans of both adult temporomandibular joints.
- FOV: 13×16; 15×6; 15×10; 15×16
- FOV: 17×10; 17×14; 17×18
TMJ PACK

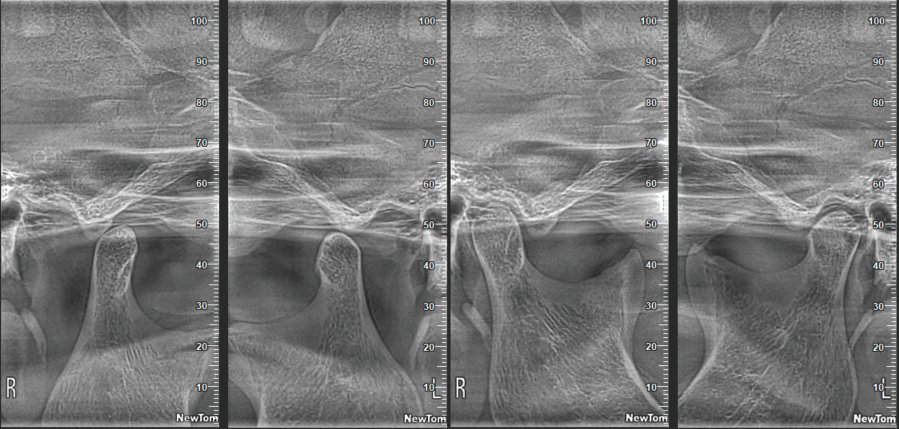

For detailed, high-resolution diagnosis of both temporomandibular joints or bilateral examination of the ears and petrous bones. Optional pack that can be paired with the Essential configuration.
FOV: 15×6; 15×10

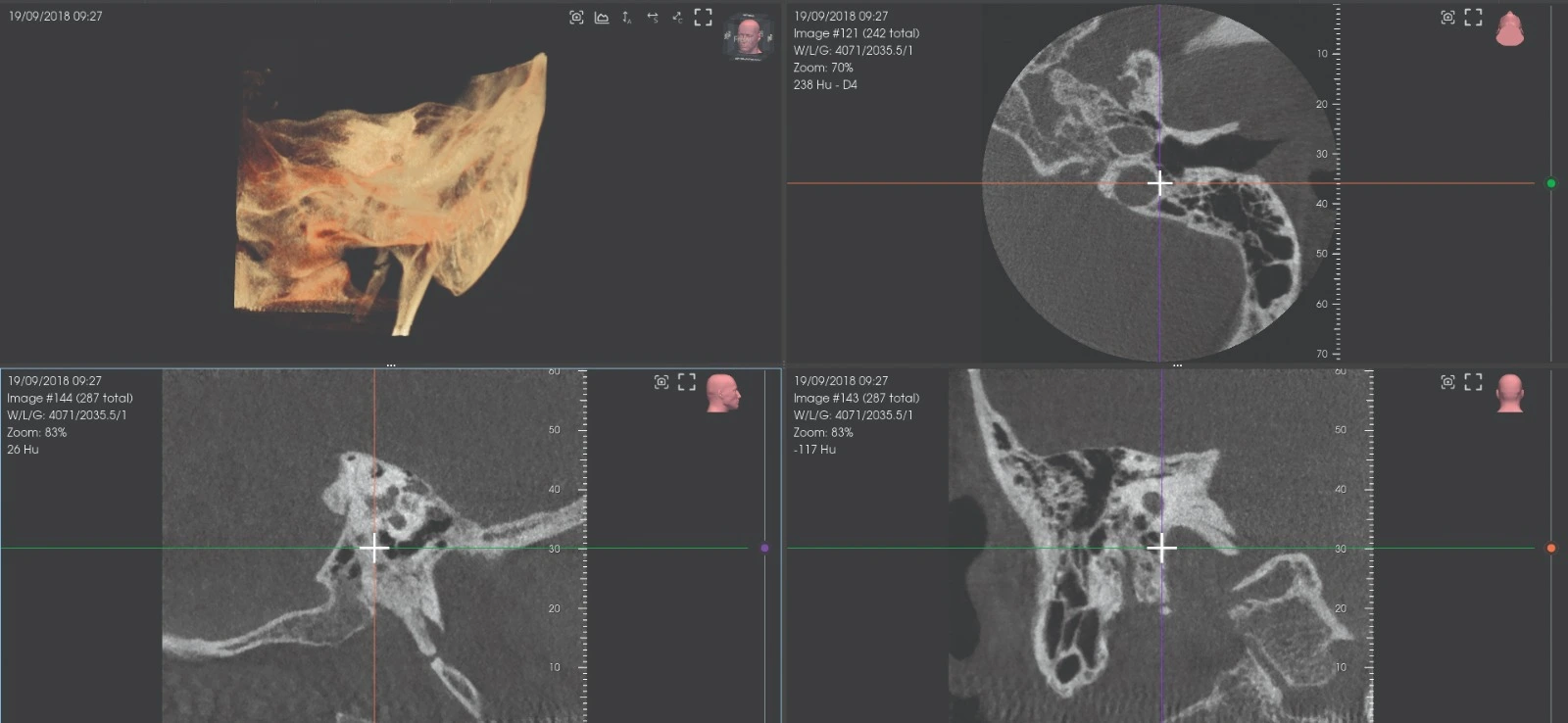

CERVICAL & EAR PACK
For high-definition analysis of the inner ear and petrous bone, and any dysplastic, inflammatory or trauma-related pathologies affecting the cervical spine. Optional pack that can be paired with the Superior configuration.
FOV: 7×6; 9×9; 9×16
ENDO PACK
For endodontic and implantology analysis at maximum resolution, reaching 50 µm (Voxel). Limits the area exposed to X-rays and so minimises the emitted dose, most importantly with paediatric patients. Optional pack that can be paired with the Essential and Superior configurations
FOV: 4×4; 5×4

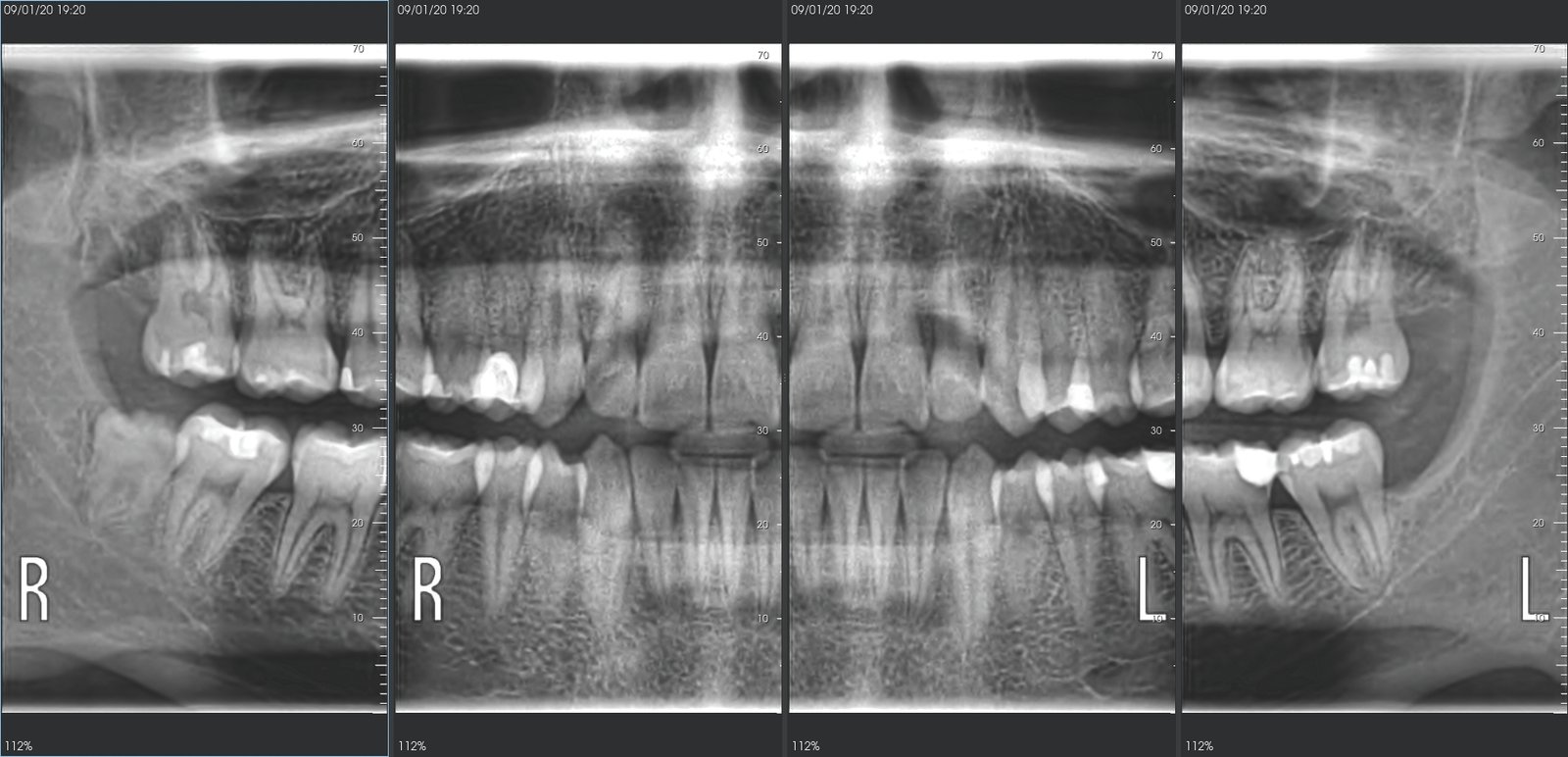

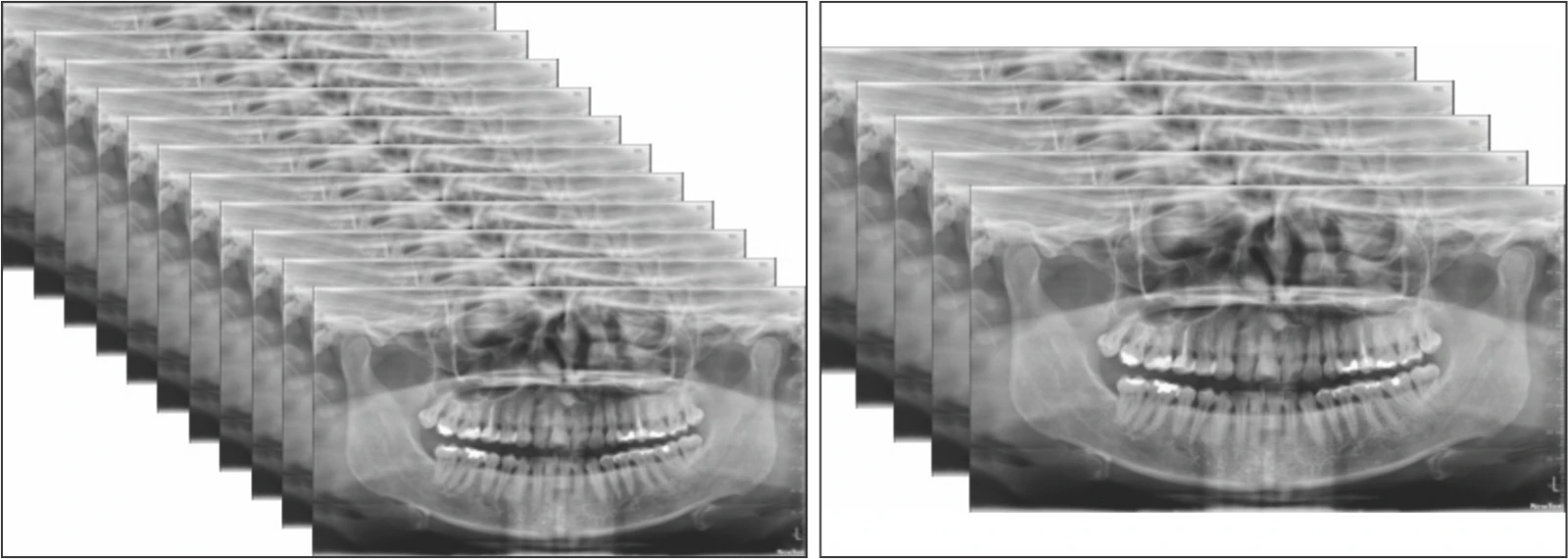

MULTIPAN
Generates a set of differently-focused orthopanoramic images in a single scan. This function is essential for the study of complex morphologies. The number of X-ray images, from which to select the one that best matches the specific diagnostic requirements, can vary from 5 (PAN HD with STANDARD sensor) to 11 (PAN UltraHD with DCIII sensor).

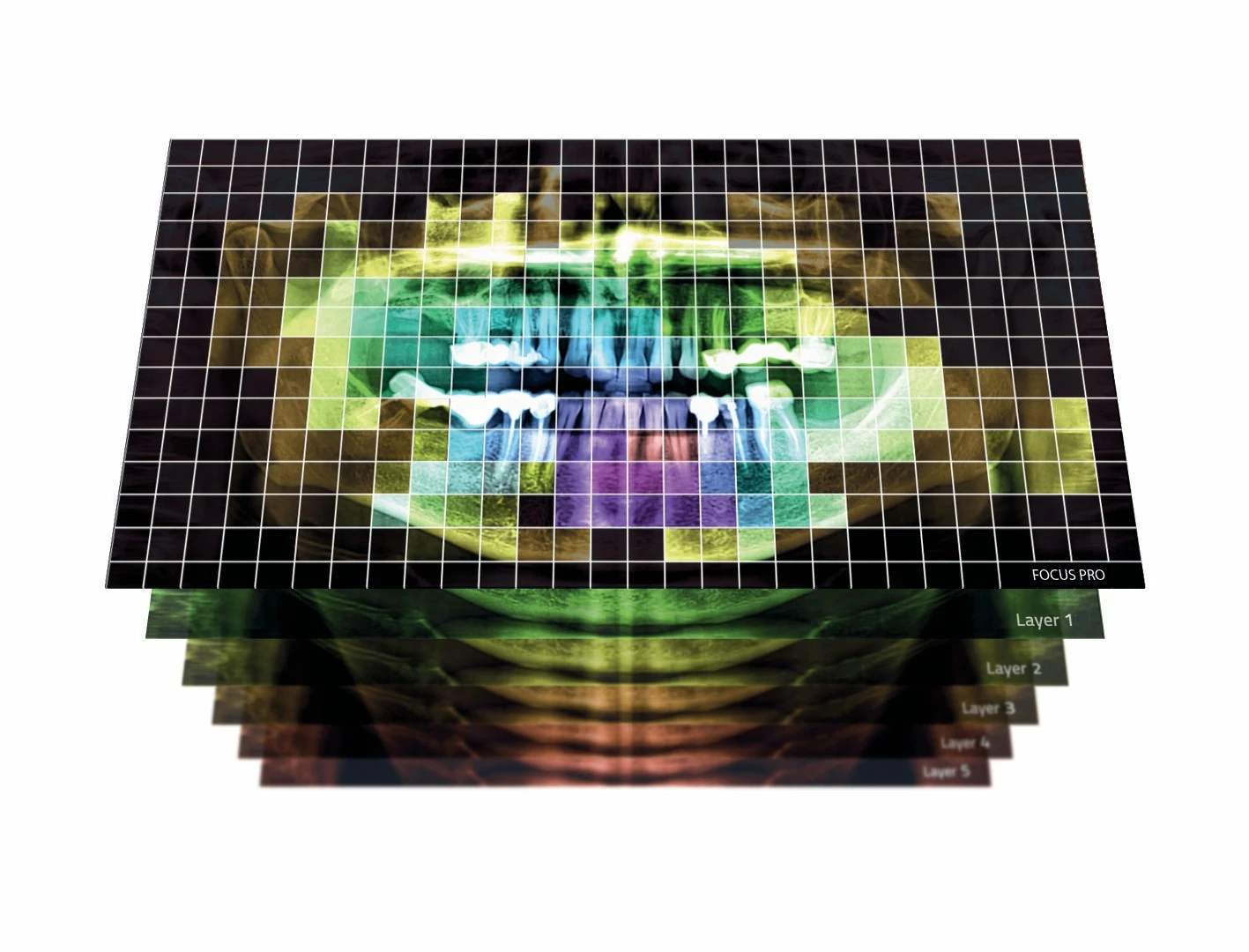

FOCUS PRO
Allows users to obtain, automatically and for standard panoramic scans, a single image by merging the layers generated by the MultiPAN function and selecting the most in-focus portions of each of them.
DIAGNOSTICS

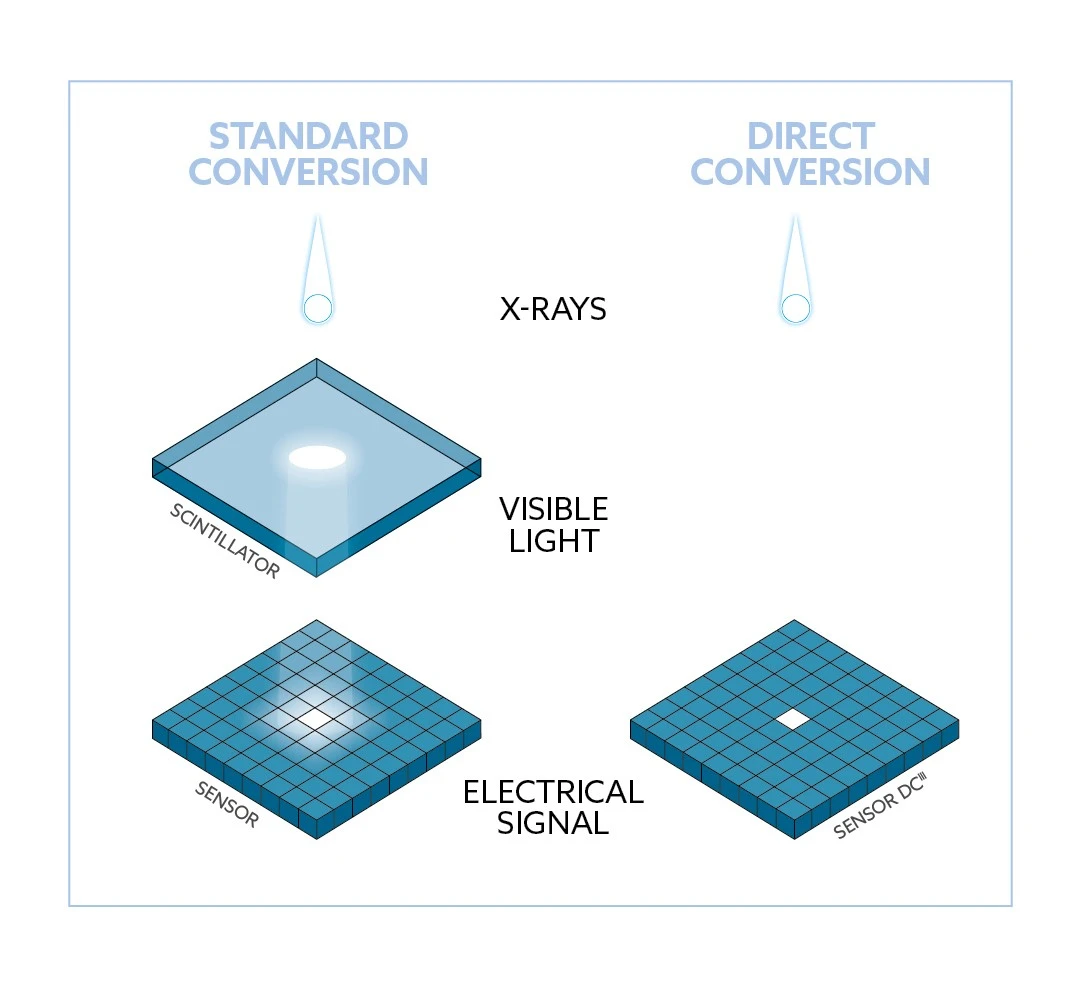

2D ULTRA HD
With the Direct Conversion Detector, NewTom GiANO HR FullView
brings state-of-the-art technology into the dental practice.
of X-rays into visible light as it is capable of sensing it directly and converting it into
precise, accurate digital signals. In this way, extremely highresolution diagnostic
images can be obtained at low X-ray doses, and highly detailed images can be
produced even where quick scans in ECO Dose are more suitable.

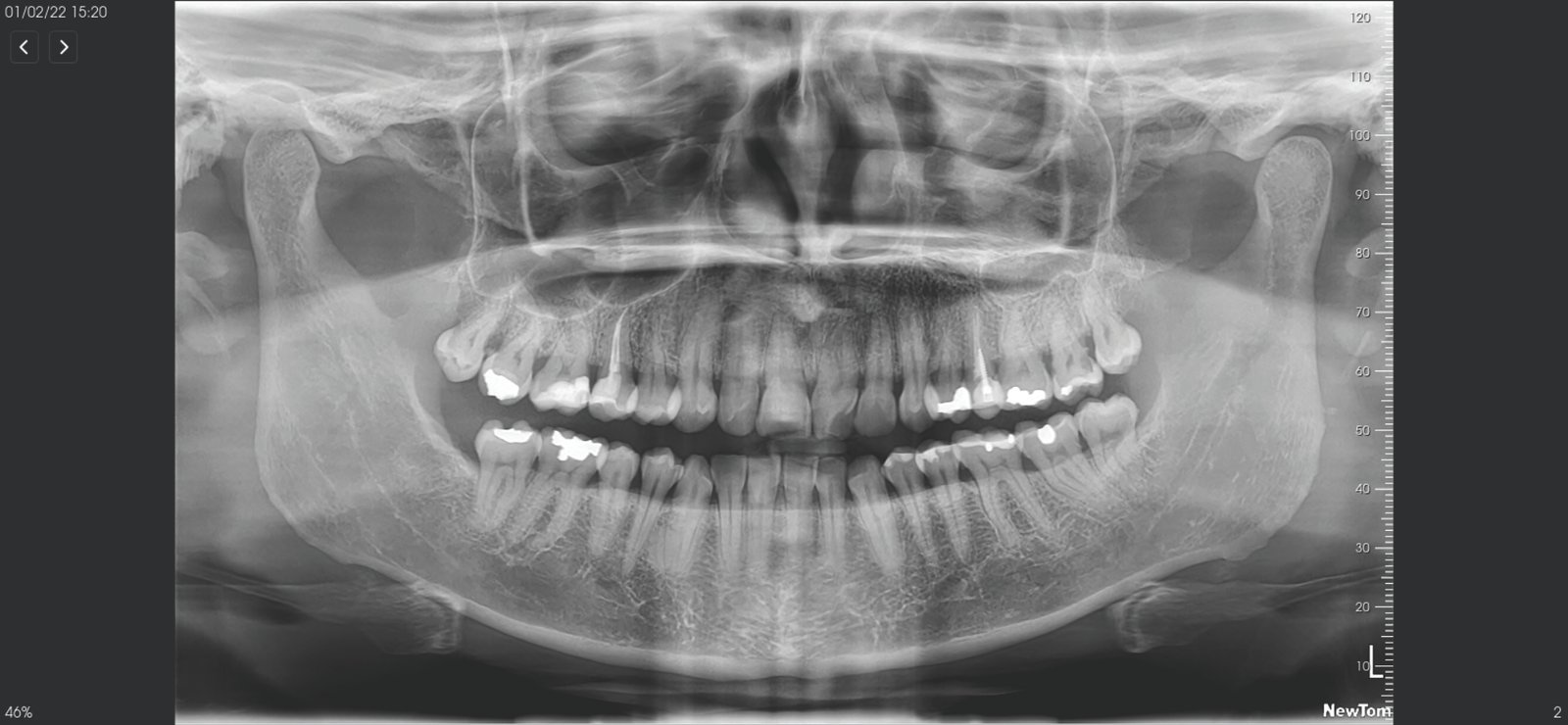

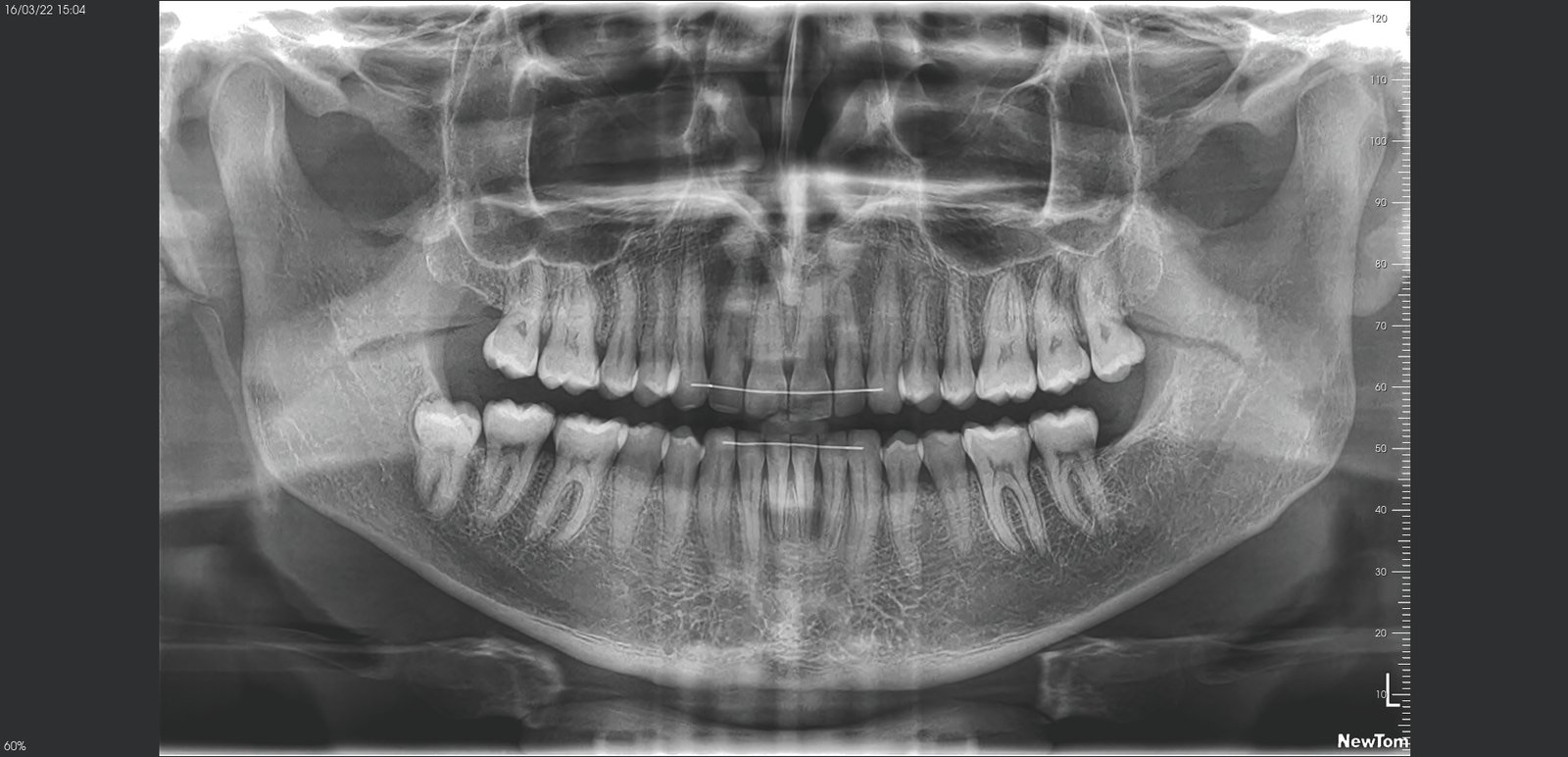

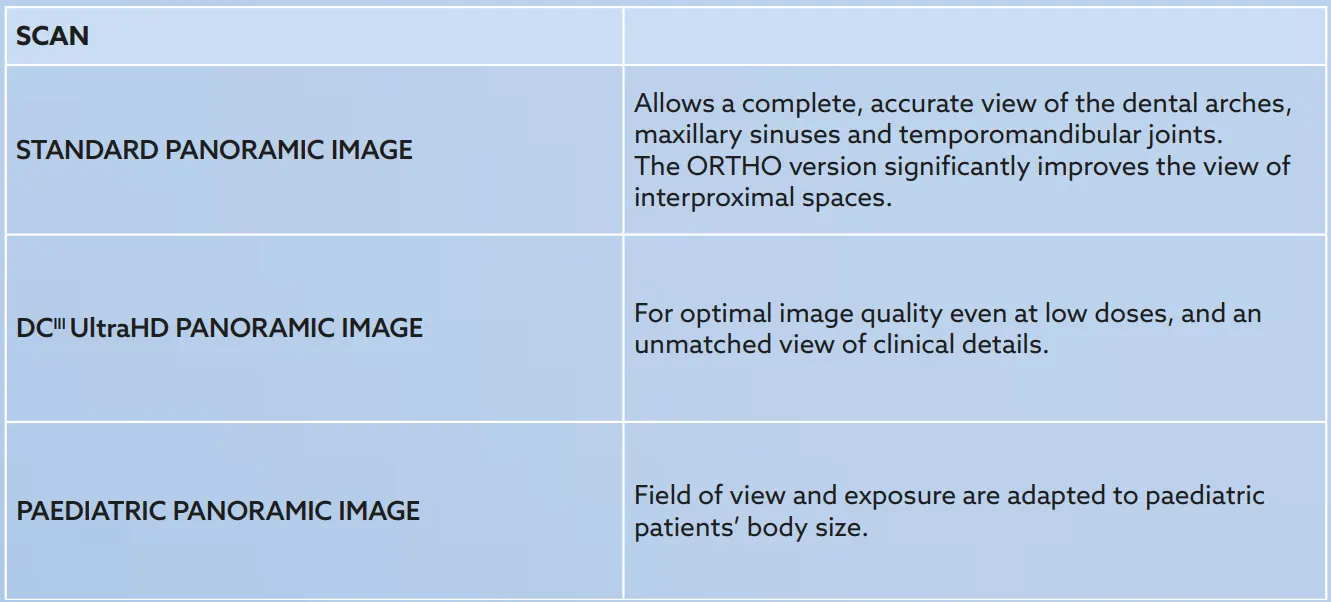

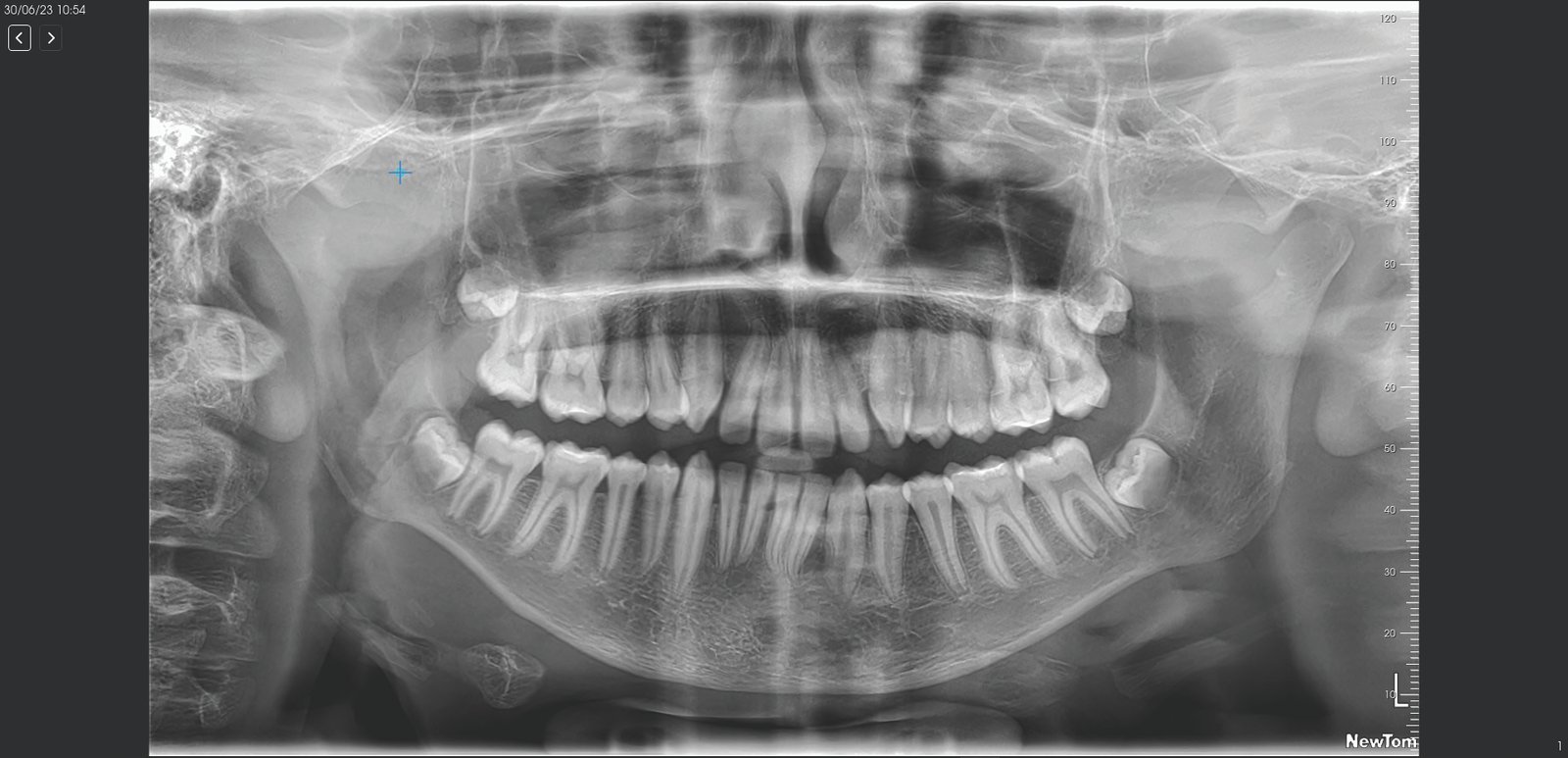

Standard panoramic image
DCIII UltraHD panoramic image

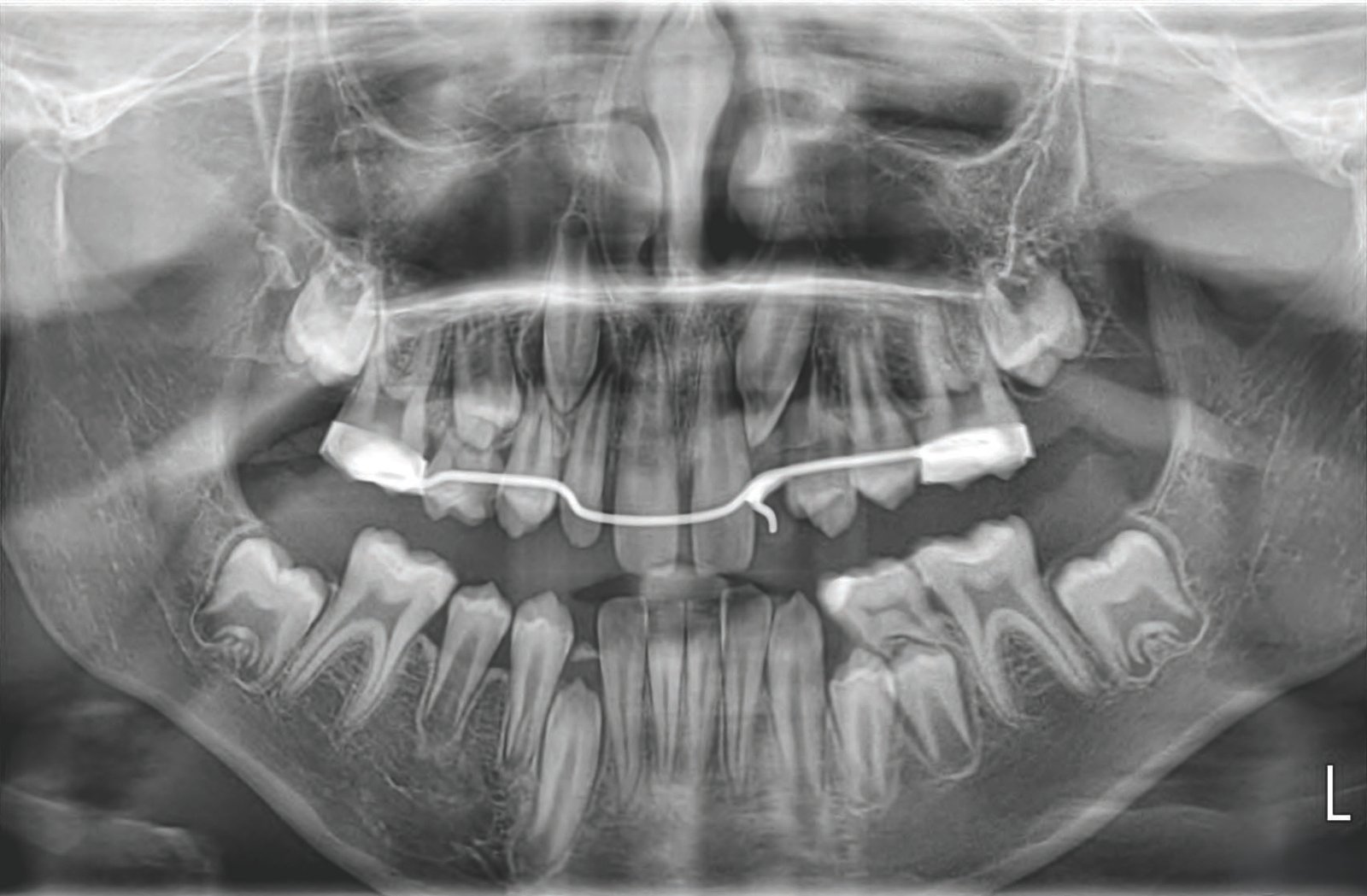

Paediatric panoramic image
CEPH SCANS AND FEATURES
The teleradiographic arm allows for cephalometric scans and carpal imaging; furthermore, thanks to the modular design of NewTom GiANO HR FullView, it can be positioned either on the right or left of the machine or added – in CEPH Ready configurations – at a later time. Patients enjoy an exceptionally comfortable experience thanks to a head support with a height-adjustable forehead support and side rods (available in two sizes, standard for adults and long for children, both complete with comfortable ear pads).
YOUR TELERADIOGRAPHY
DEVICE
Complete your dental practice’s offering by adding cephalometric scans.
DCIII CEPH Ultra HD AND ECO
DCIII technology allows practitioners to perform Ultra HD CEPH scans, almost tripling the contrast level at a given resolution, dose remaining equal. For surgical follow-ups or paediatric examinations, the ECO option allows ultra-fast scans, high-res, low-dose postero-anterior views included.

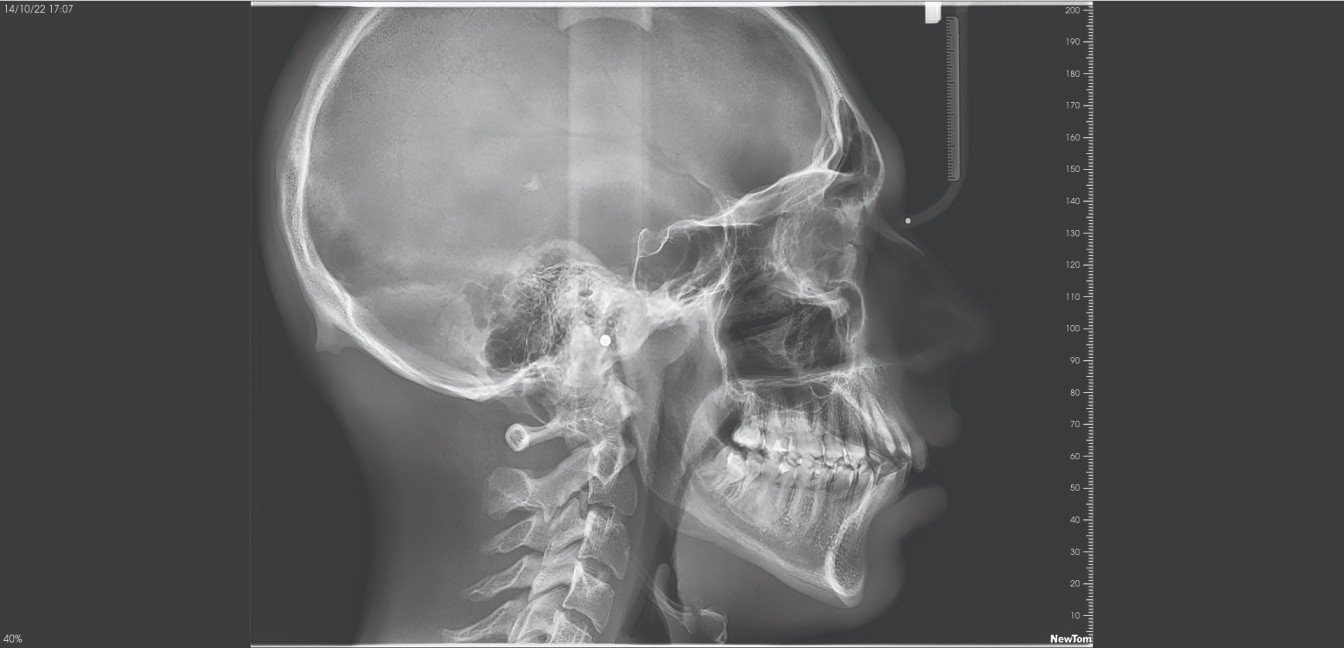

LATERAL SKULL TELERADIOGRAPHY (LL)
Allows highly detailed images of bone structures and soft tissues, providing essential data for cephalometric studies.

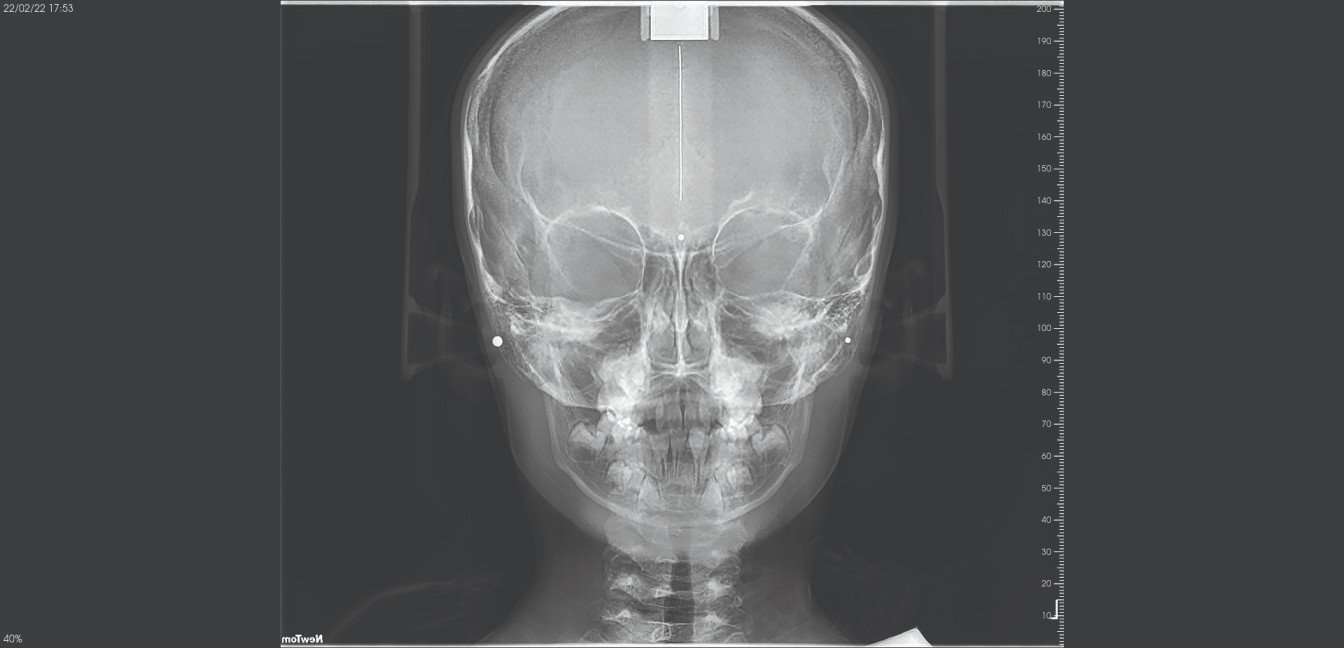

FRONTAL SKULL TELERADIOGRAPHY
(AP-PA)
Using frontal projections, this helps users investigate the presence of any asymmetries or malocclusions for optimal completion of the required patient treatment.

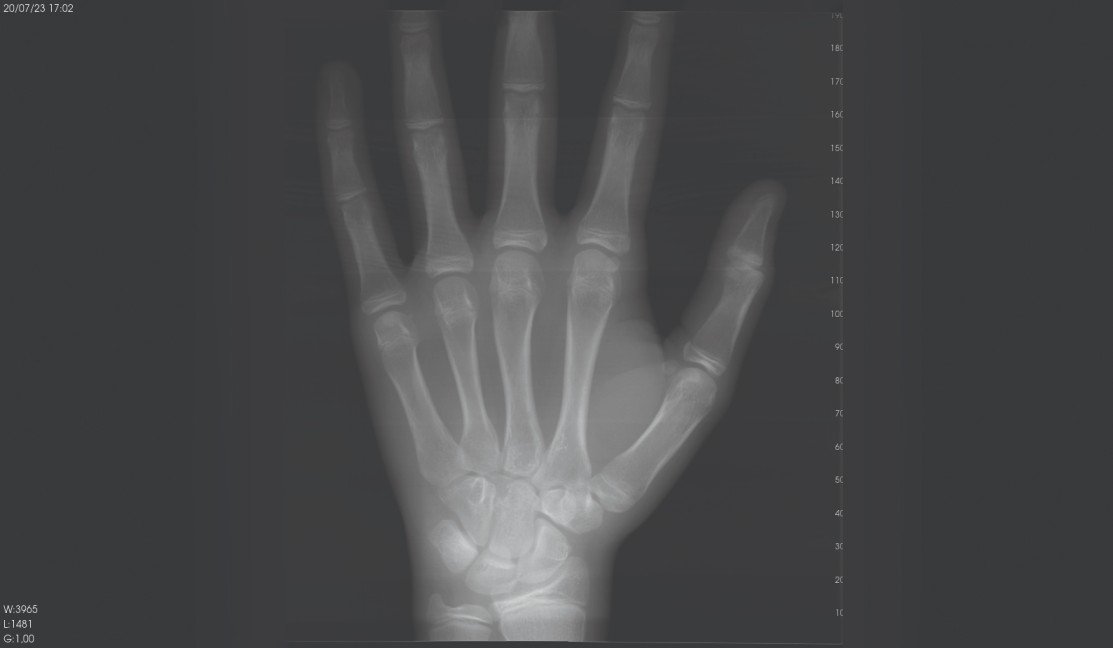

CARPAL TELERADIOGRAPHY
In paediatric patients, its main purpose is evaluating the residual bone growth potential to better predict the development of maxillary and mandibular bones. Scanning can be performed with a dedicated support.

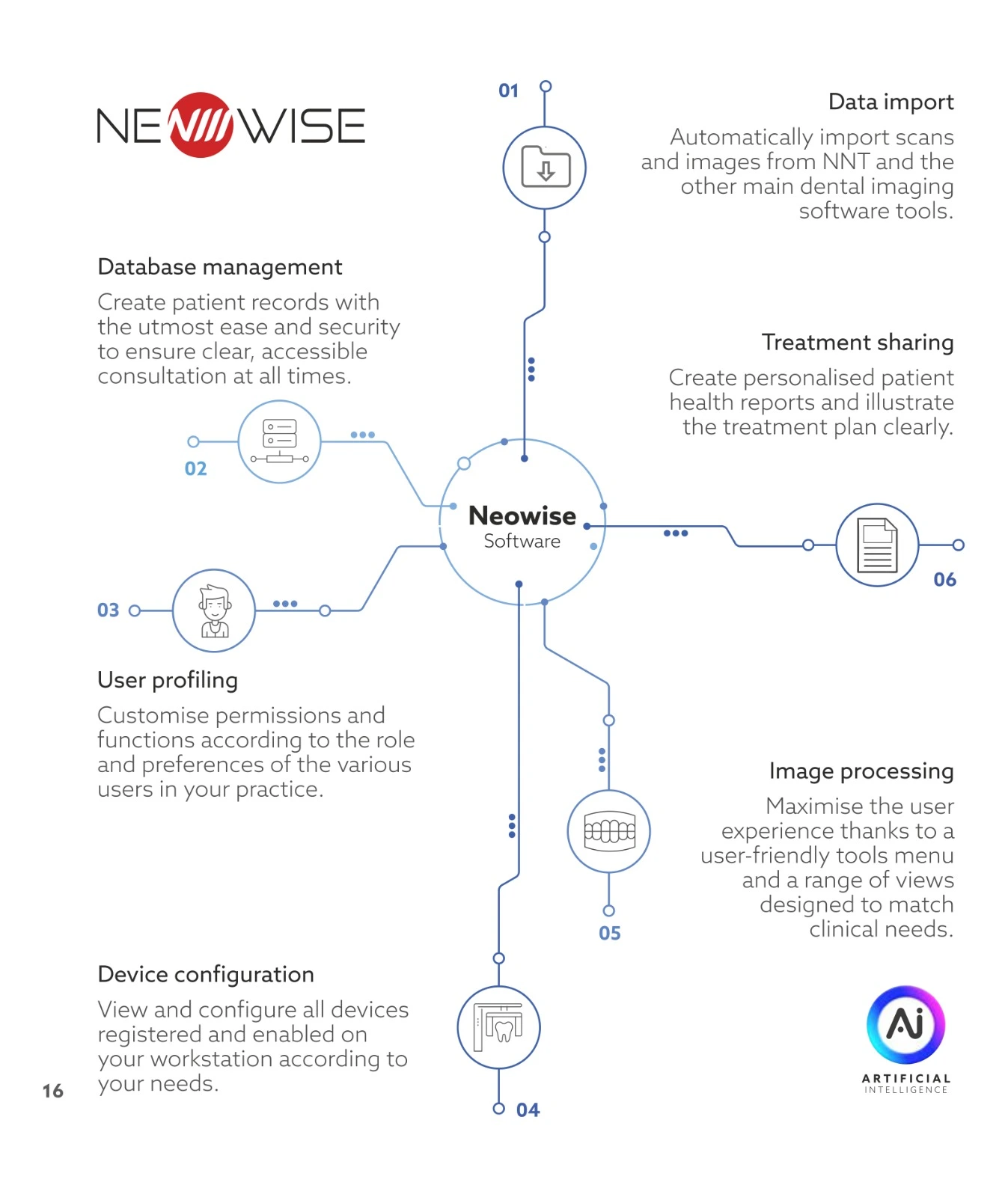

NEXT-GEN DIGITAL ASSISTANT

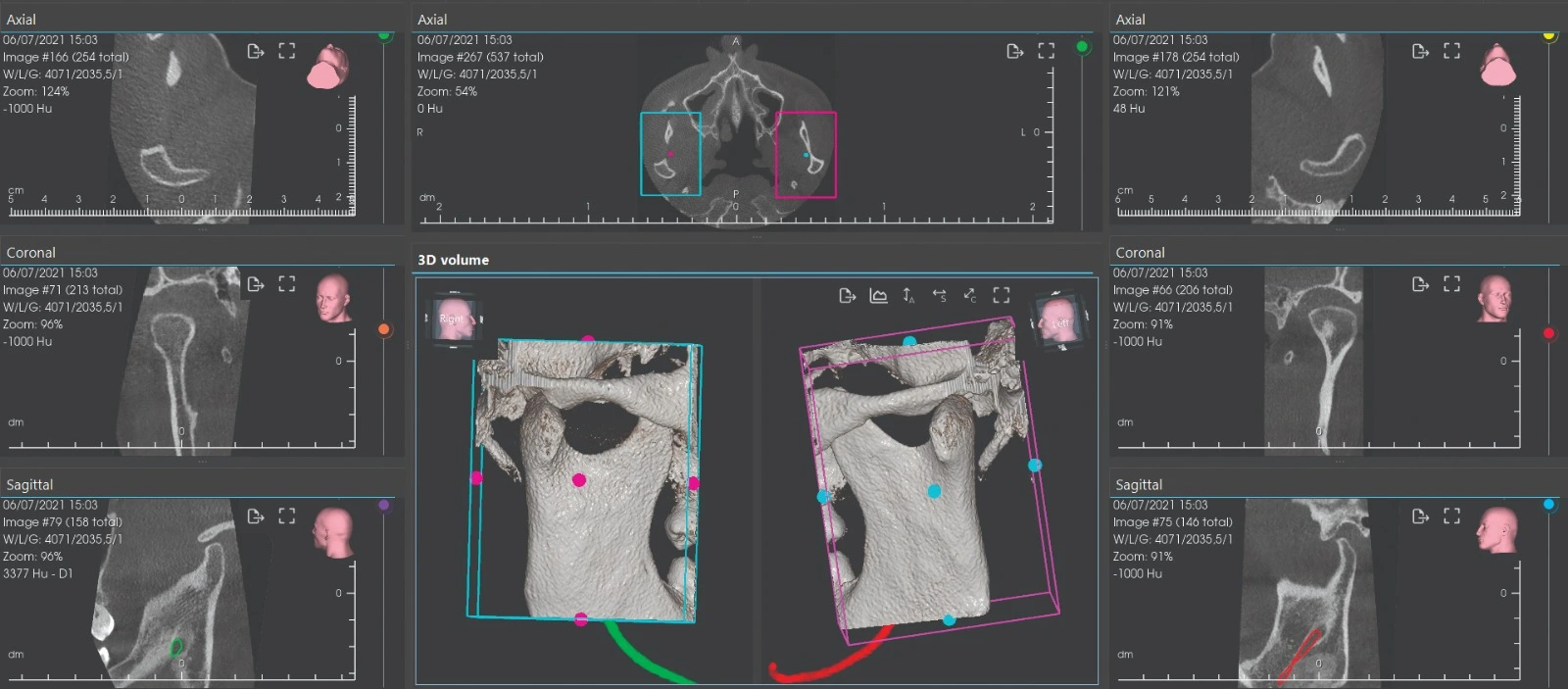

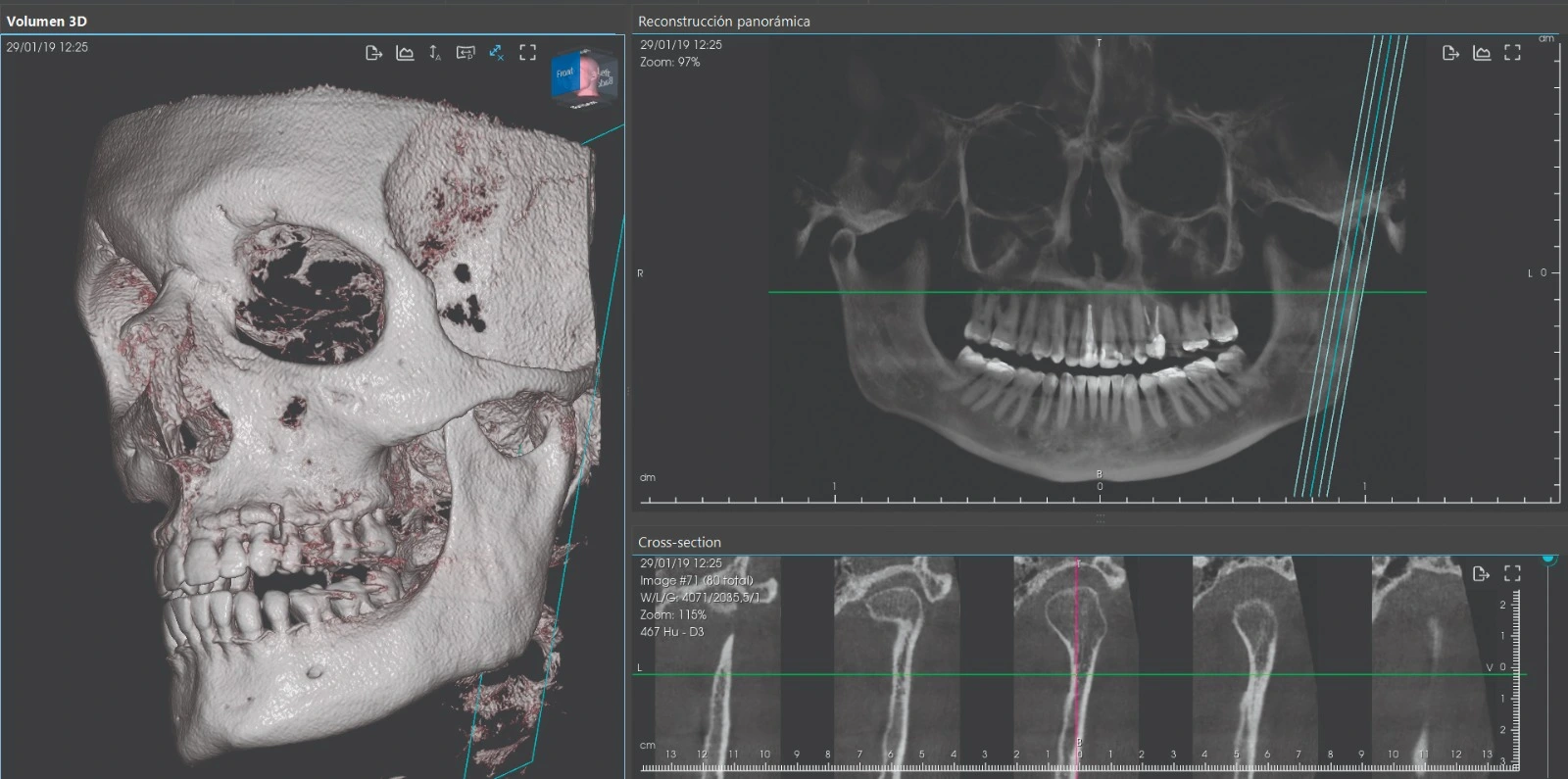

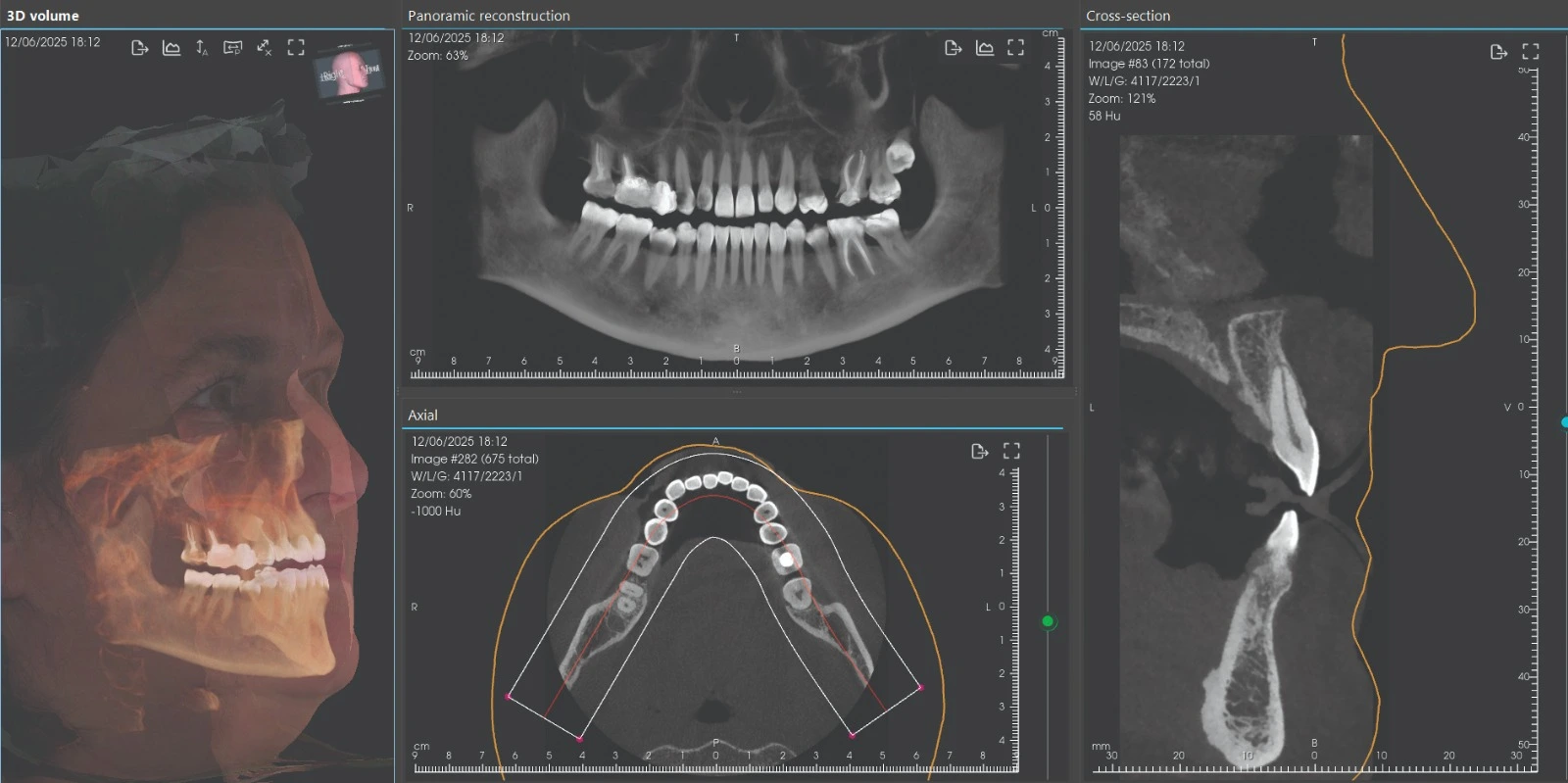

Neowise imaging software is designed around you and your patients. It allows you to manage/process 2D and 3D images for accurate diagnoses and streamlined communication with the patient. Simple and effective, with advanced diagnostic/ planning tools and filters.
Automating processes such as image segmentation and classification will cut treatment time, making your practice more efficient.
Advanced rendering algorithms allow real-time display and management of 3D images for consistently detailed diagnoses.
Advanced diagnostic tools make it easier to explain treatment plans to patients, improving their understanding and level of engagement.
This function can be used to view the expected outcomes of practices such as implant positioning; for example, it allows assessment of the insertion angle and can predict aesthetic results with dental crowns
Designed to improve the user experience and reduce learning times. Using a whole range of different features has never been easier or more personalized.
The software accesses all patient scans quickly via a single interface to simplify consultation and streamline cooperation between teams from different departments.
The software lets you view and compare 2D and 3D images simultaneously, making it easier to compare clinical information and improving diagnostic capacity.
Key communication protocols such as DICOM, RIS/PACS and TWAIN are supported, ensuring secure transmission and storage of medical images
ENHANCES CLINICAL
EFFICIENCY BY OPTIMISING
THE WORKFLOW
INNOVATIVE CLINICAL
SOLUTIONS

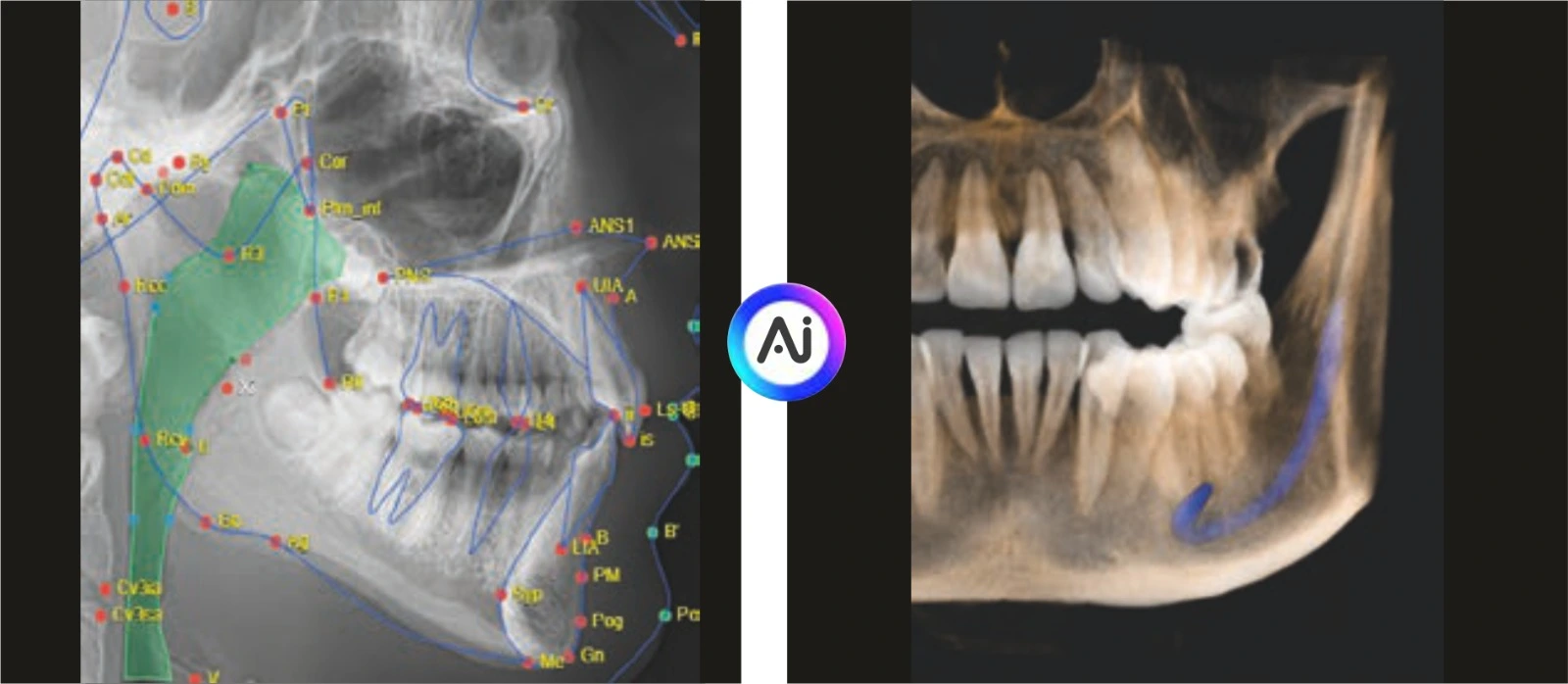

Neowise integrates automated AI-powered features that improve diagnoses, raise operational efficiency and make treatment more personalised for each patient, making your work more precise and finely targeted than ever.
- Detection of panoramic curves on CBCT scans
- Identification of inferior alveolar nerve in volumetric scans
- 2D and 3D Data Classification

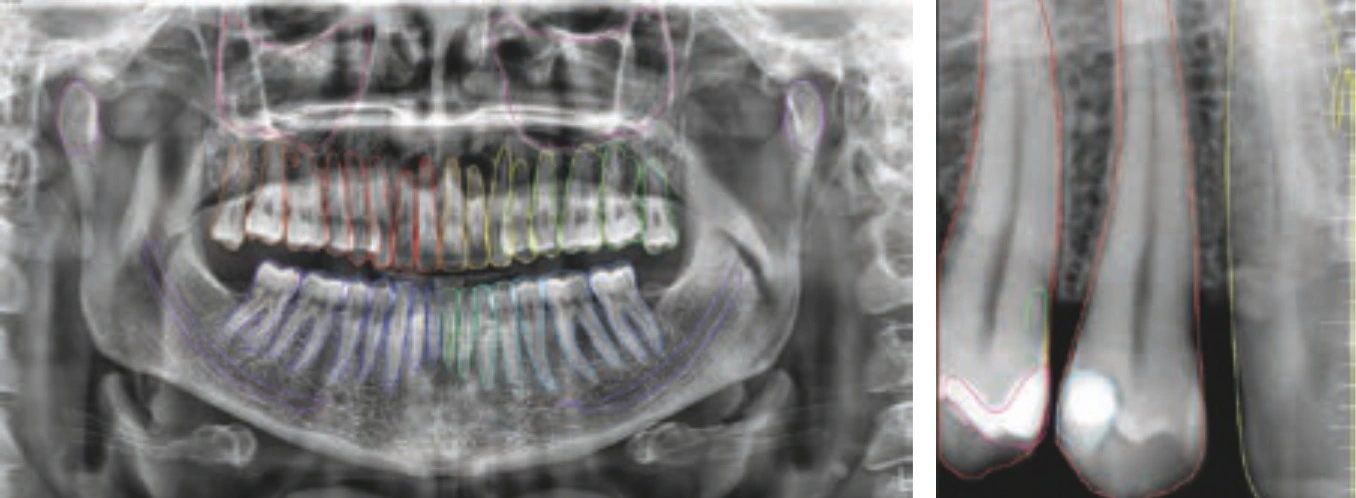

- Anatomical and pathological analysis for 2D intraoral and panoramic scans
- Segmentation of 3D anatomical structures
- Airway identification in cephalometry for the diagnosis of OSAS pathologies
- Alignment of latero-lateral teleradiography with photo of patient
- Alignment and combination of CBCT scans with optical impressions
- Detection of cephalometric points and creation of tracings
- Smile Design module to simulate aesthetic treatments in frontal sectors

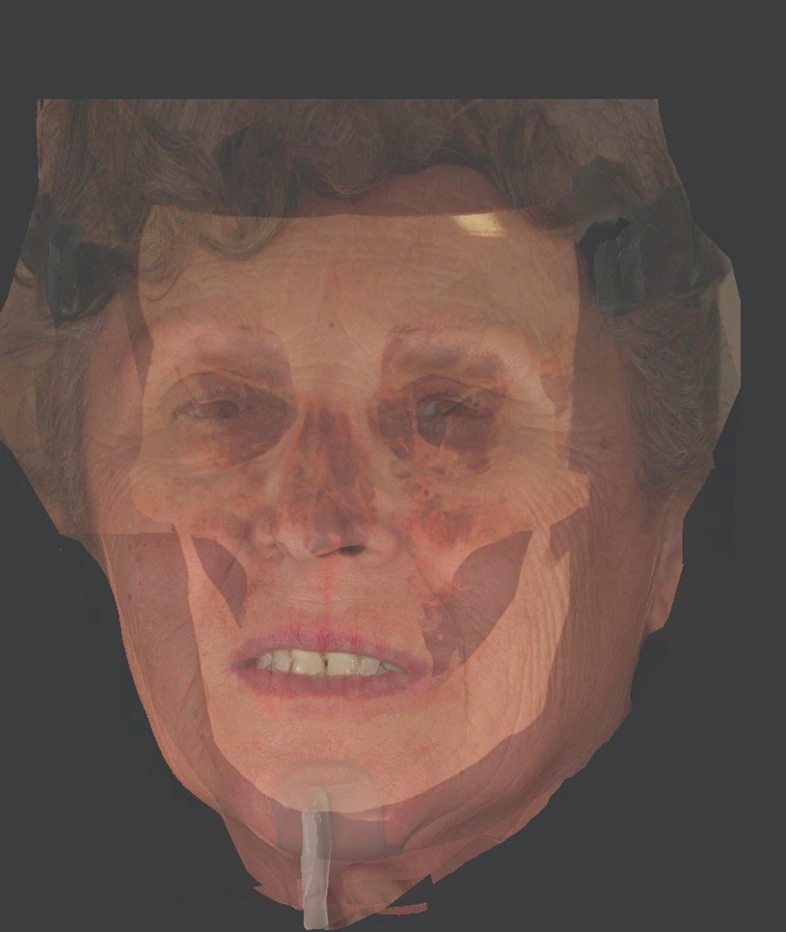

3DPic:
EVERYTHING UNDER CONTROL

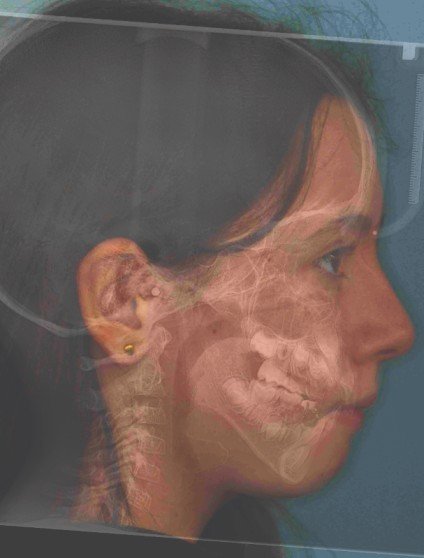

With the 3DPic function, NEWTOM GiANO HR FullView provides realistic images of the face that can be superimposed on X-ray images. Accurate display of proportions and asymmetries helps predict post-treatment changes, particularly in orthodontics and surgery maxillofacial.
Obtained without emitting radiation, images produced by 3DPic aid patient understanding and reduce the required number of sessions by combining multiple sources of diagnostic information
SafeBeamTM TECHNOLOGY
Lets users adapt the emitted radiation dose to the patient’s anatomy, so that the X-ray dose is adjusted to the actual physical characteristics and build of the person being examined, avoiding unnecessary exposure levels and obtaining consistently clear images, without any need to manually enter exposure parameters.
DOSESAVER TECHNOLOGY
Optimises patient doses for panoramic scans via two pre-settable modes, “80” and “100”, automatically adapting exposure thanks to the SafeBeamTM feature.

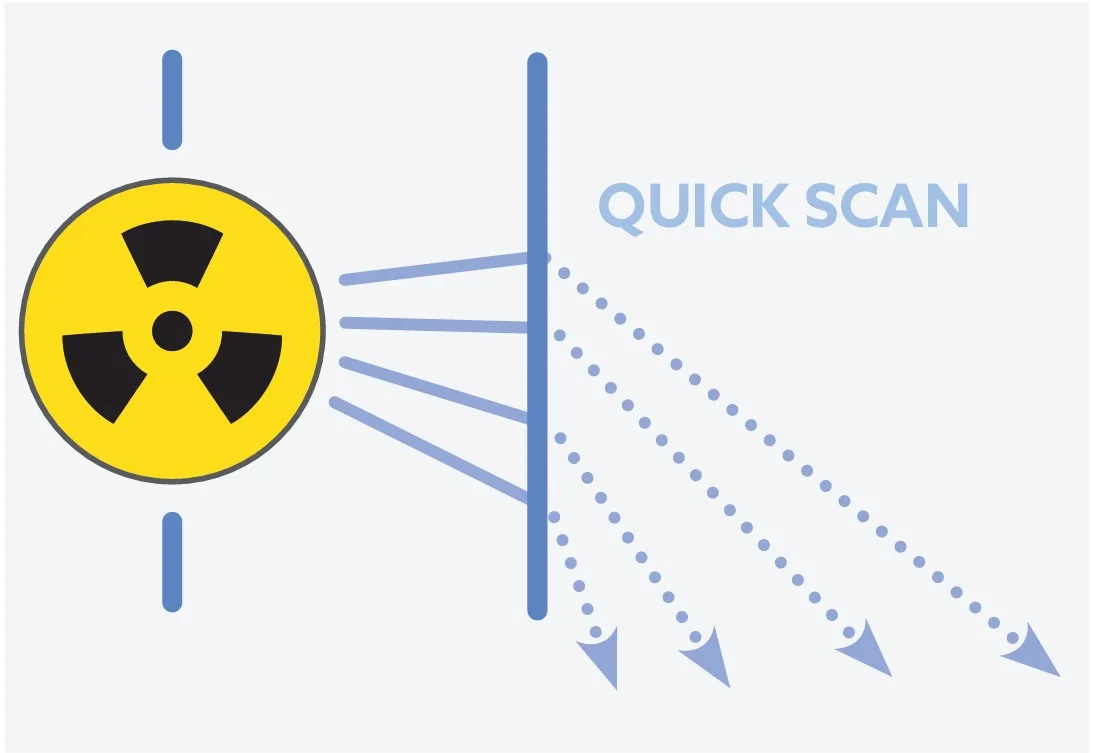

ECO DOSE PROTOCOLS
Available for both 2D and 3D scanning, these protocols provide accurate images but with lower doses than in standard scans. They are the ideal tool for post-operative monitoring and identification of any macro-structures (such as impacted teeth and agenesis) and, more generally, for all situations where the X-ray dose must be kept to a minimum.
REAL VISION MULTIMEDIA PACK SYSTEM
Dual camera and intercom for greater ease of use and guided patient positioning during scan set-up. Constant monitoring and perfect alignment of the diagnostic investigation directly on the patient’s face.

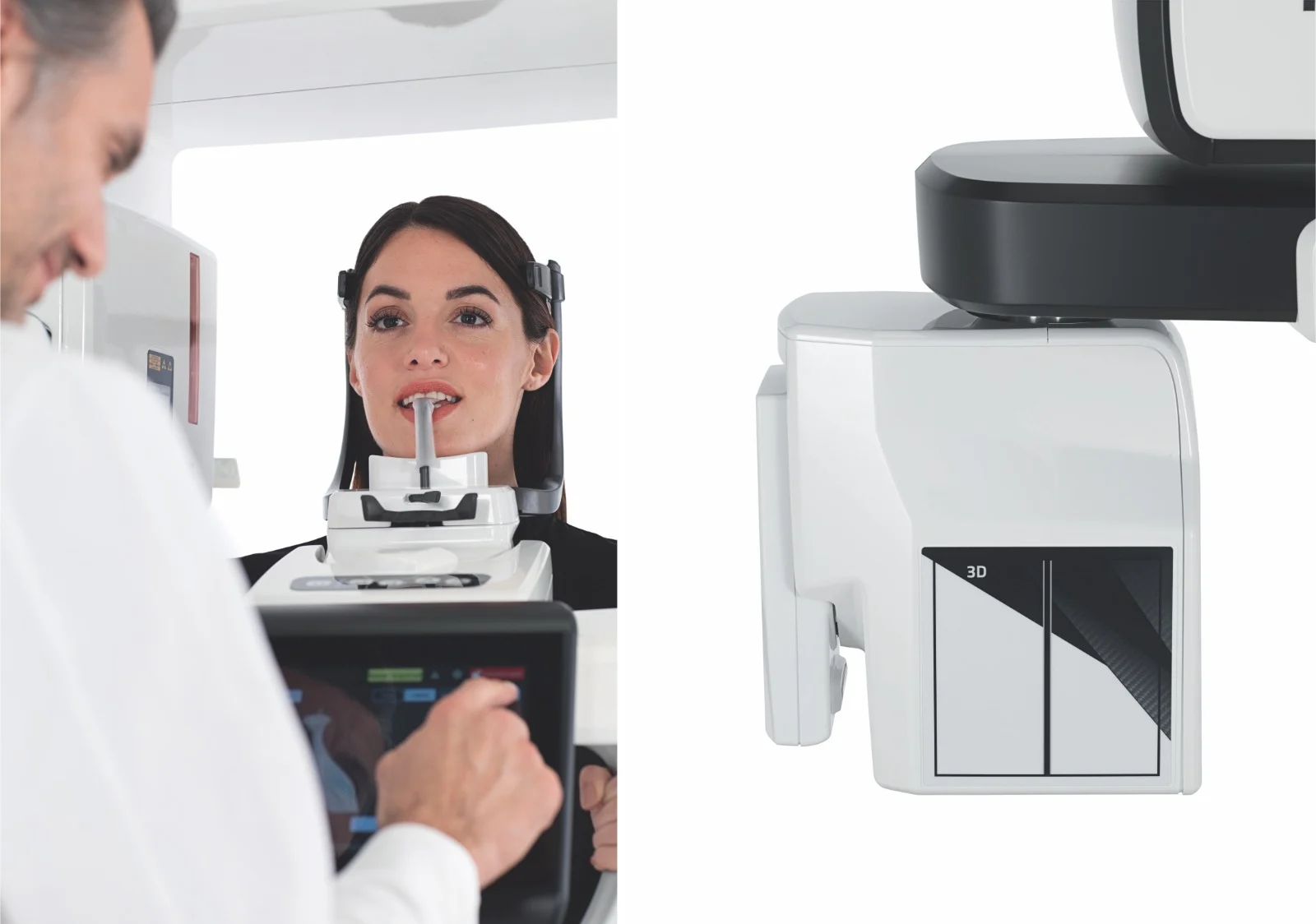

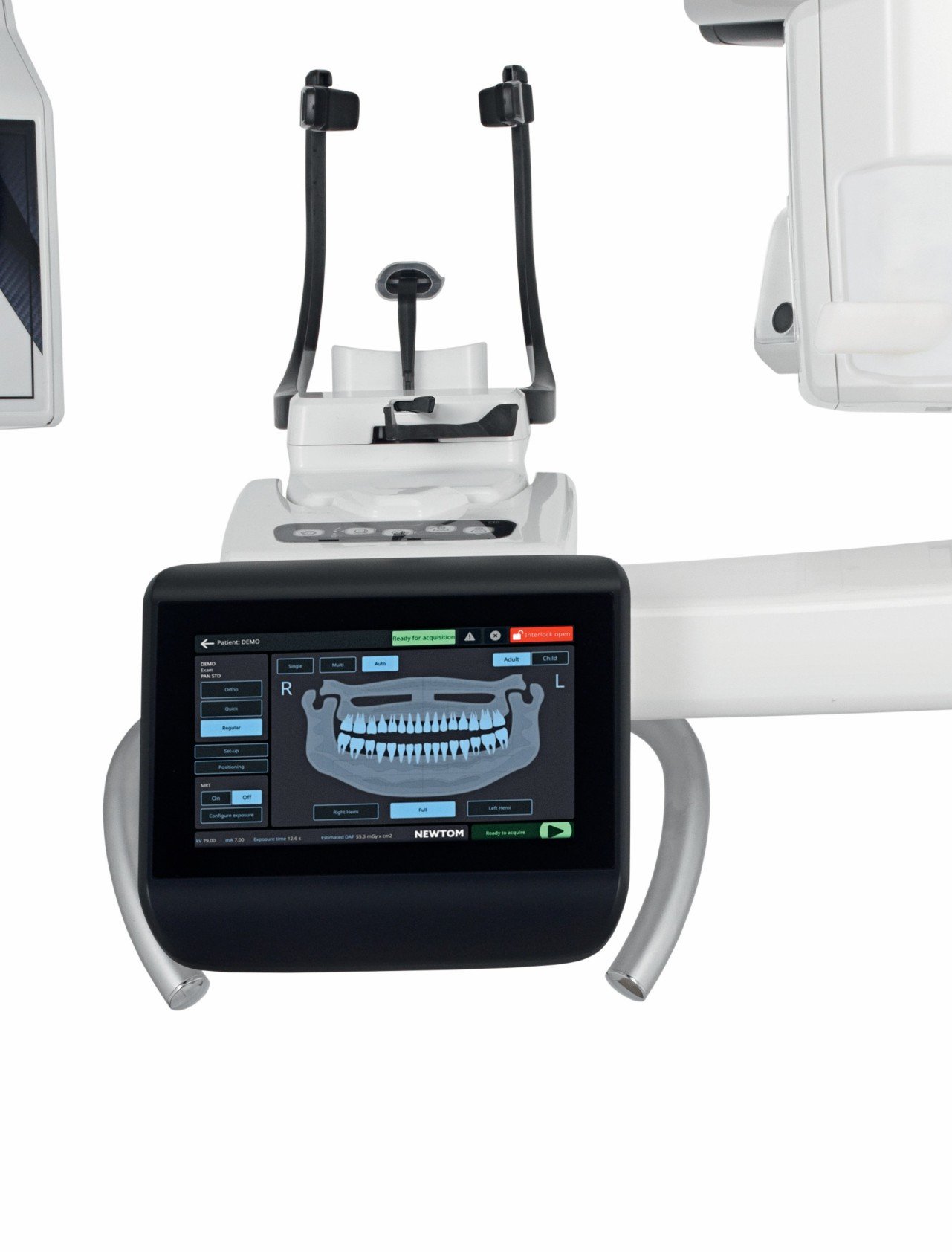

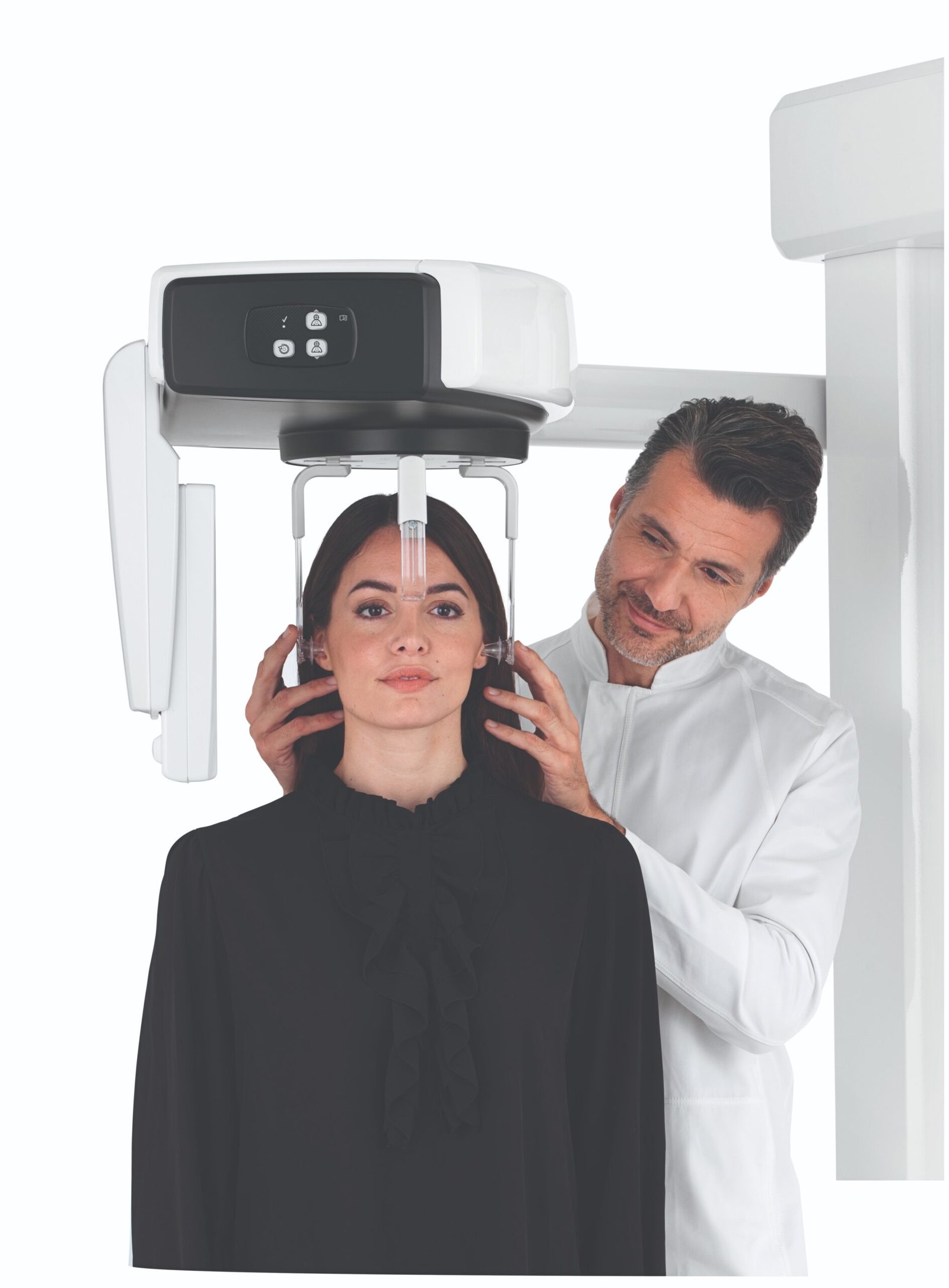

NEW HEAD SUPPORT AND BITE
The ergonomic head support adapts to the shape of individual patients’ heads and, together with the two supplied bites, ensures proper positioning of the arches, a high-quality final result and diagnostic repeatability of scans, even with edentulous persons, children or patients without incisors.
Laser beams also let users perform direct, precise, on-patient selection of the most suitable FOV height or check whether the selected FOV is suitable prior to exposure.

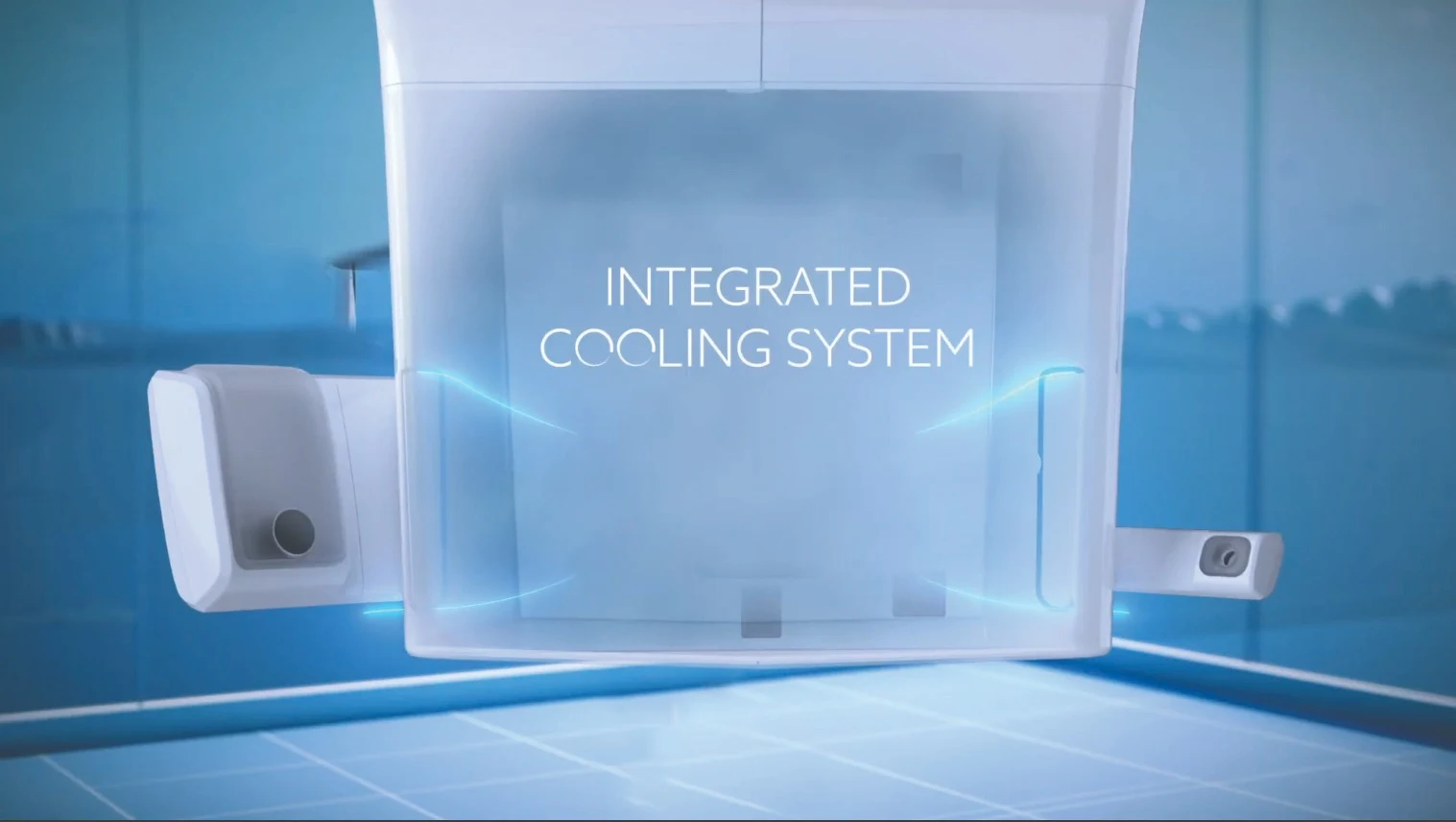

COOLING SYSTEM
Allows maintenance of high-quality, accurate 2D and 3D images even during continuous use, maximizing performance and minimizing the risk of any machine downtime.
